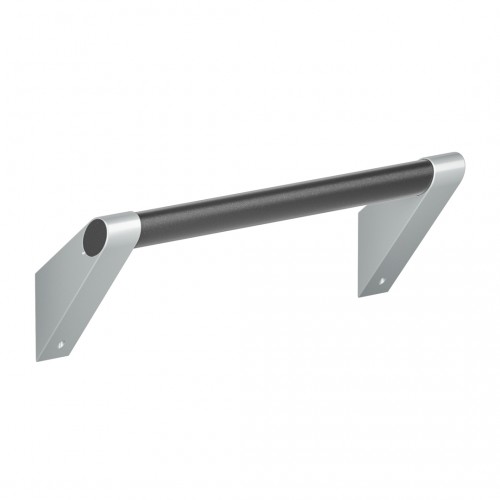

KWS 'ERGO' A100 82.8401 Grab Rail
KWS Ergo System® A100...
82.8401 Grab Rail
-
Suitable for the Shower, Bathtub and WC area
-
Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
-
With concealed support fixing using the mounting shoe principle and screw connection (M5 threaded bolt, with tolerance compensation +/- 2mm)
-
Fixings supplied
-
Compatible with suspended seats (from L = 450mm), Shower rails and storage trays from the ErgoSystem® A100 Series

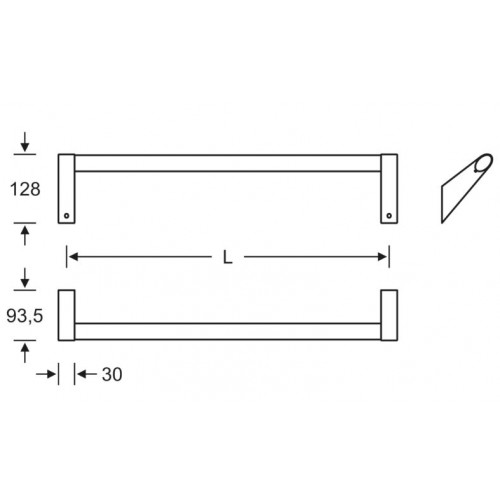

Lengths available:
-
300mm
-
450mm
-
600mm
Special lengths also available on request
Load-bearing capacity:
-
Tested up to 100 kg
Material:
Aluminium, Powder Coated.
Supports: Zinc die cast
Finish: Powder Coated
-
Anthracite Grey Metallic (Similar to RAL 7016)
-
Anemone White (Similar to RAL 9016)
-
Oyster Grey (Similar to RAL 7040)
-
Matt Black (Similar to RAL 9005)
-
Grey Metallic* / Anthracite Grey Metallic** (*Supports, ** Rail)
KWS Catalogue Page
Fitting Instructions
- Brand: KWS
- Product Code: Please select available options first
- Availability: Please select available options first
