'Asgard' 28HZ Automatic Flush Bolt
D&E 'Asgard' Automatic Flush Bolt - 28HZA
This flush bolt is mainly used for double doors made of Timber.
A door selector should be used with this product.
Handing (See diagram shown in images)
-
Supplied Handed - Left hand (Type 1) or Right hand (Type 2)
(If you are installing one at the top & one at the bottom of the door you would need one of each hand)

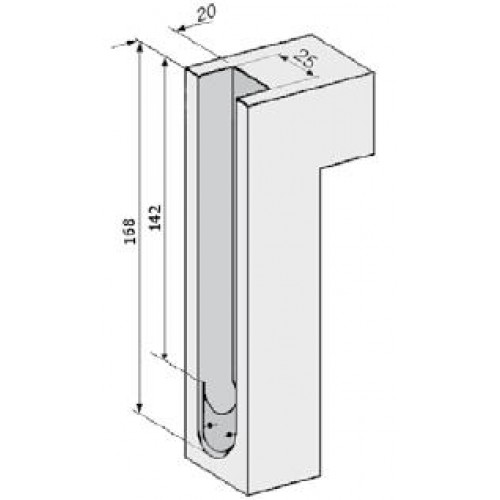

Size
-
168mm High x 25mm Wide x 20mm Deep
-
Forend Thickness: 2mm
-
Backset: 12mm Including forend
Same dimensions as manual flush bolt 30HZM.
Bolt Dimensions
- Bolt Diameter: 10mm
- Bolt Projection: 13mm
- Adjustability: -1 / +12mm
Finish
- Steel, Zinc Plated
Supplied with OLDA LP10 Lock Plate, OLDA SP10 strike plate & fixings.
For a floor socket with a sprung dust cover see product ref: 475.
Installation:
OLDA 28HZA is fitted recessed in the edge of the door, either flush with cut-out or without cut-out for the forend.
Fixed with four countersunk screws.
Warranty:
All mechanical "OLDA" branded products have a 36 month factory warranty.
Technical Datasheet
- Brand: Olda
- Product Code: Please select available options first
- Availability: Please select available options first
