'Asgard' 35HZS Semi-Automatic Flush Bolt with Latching Action
D&E 'Asgard' Semi-Automatic Flush Bolt with Latching Action - 35 HZS
The "Asgard" Semi Automatic, single action flush bolt is bolted automatically when the passive door leaf closes but is unbolted manually.
Same dimensions as the Automatic flush bolts 34 HZA and 37 HZA.
This flush bolt is mainly used for rebated double doors made of Timber, Steel or Aluminium pofiles without joint edge.
The bolt on 35 HZS is in it's normal state, projected to its full height. Normally it is only recommended to be installed at the top of the edge of the passive door leaves.
If 35 HZS is to be installed at the bottom, you must ensure that the projected bolt does not collide with the floor or sills etc...
At activation, when the passive door leaf closes, the bevelled bolt slides against the bottom of the lock plate and is retracted into the flush bolt, until the bolt reaches the hole in the lock plate and is projected again, at which point the bolting is complete. The unbolting is then made manually.

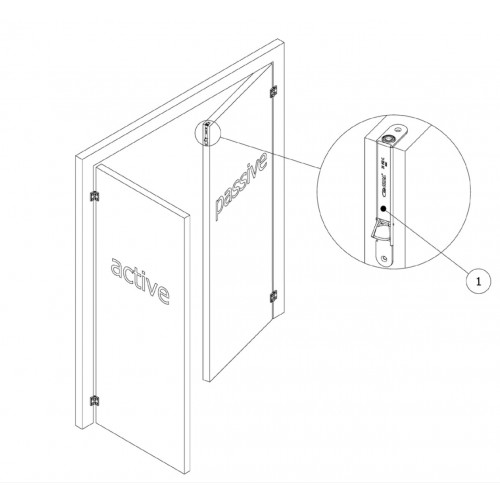

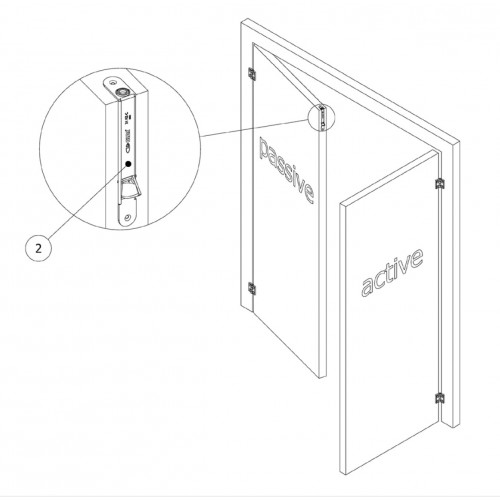

Handing (See diagram shown in images)
-
Supplied Handed - Left hand (Type 1) or Right hand (Type 2)
Recommended combination: To achieve two bolting points in the door is to fit a 35 HZA at the top and a 34 HZA at the bottom of the door leaf.

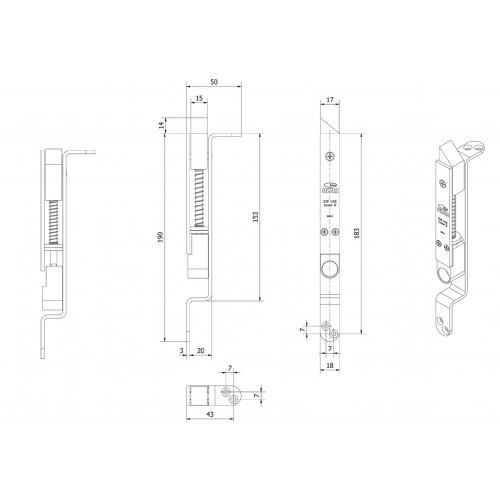

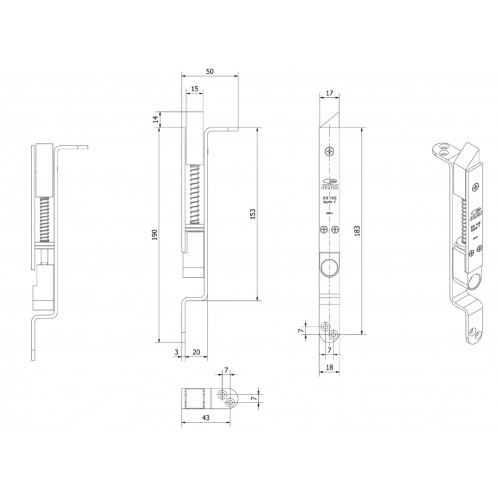

Size
-
190mm High x 18mm Wide x 23mm/50mm Deep
-
Forend Thickness: 3mm
Same dimensions as automatic flush bolts 34HZA and 37HZA.
Bolt Dimensions
- Bolt Depth: 15mm
- Bolt Width: 17mm
- Bolt Projection: 14mm
- Adjustability: 0mm
Finish
- Steel, Zinc Plated
Supplied with OLDA LP30 Lock Plate & fixings.
Installation:
OLDA 35HZS is fitted recessed in the edge of the door, either flush with cut-out or without cut-out for the forend.
Fixed with four countersunk screws.
Warranty:
All mechanical "OLDA" branded products have a 36 month factory warranty.
- Brand: Olda
- Product Code: Please select available options first
- Availability: Please select available options first
