HELM MK-L 80 H 114 'Timber' Sliding Door Kit Including Track - Max. 80kg

The HELM MK series, also known as the 'Modular Concept' is a versitile hardware system with perfectly co-ordinated components that enables numerous sliding solutions even for difficult structural conditions and limited space, from single leaf doors to multi-leaf systems with independently, synchronised or telescopic moveable leaves, wall mounted, ceiling or in a wall pocket.

For light interior sliding doors up to 80kg the MK-L 80 is used, while the MK-M 140 is for heavier doors up to 140kg.

Sliding Timber doors can be used in a wide range of applications in both Domestic and Commercial environments.

HELM Sliding Door products are precision made in Germany using the latest techniques and high quality workmanship.

Designed for simple fixing and ease of use.

• Tested according to DIN EN 1527:2013 (200,000 cylcles).
• Suitable for internal timber doors.
• Trolleys: Height adjustable even after installation, with load bearing pendulum insert for a long service life.
• Smart guide: clearance free bottom guide to reduce or avoid rattling noises, suitable for 8mm groove.
• Max. Weight: 80kg
• Minimum door thickness:  20mm

HMK.L80.H.114.

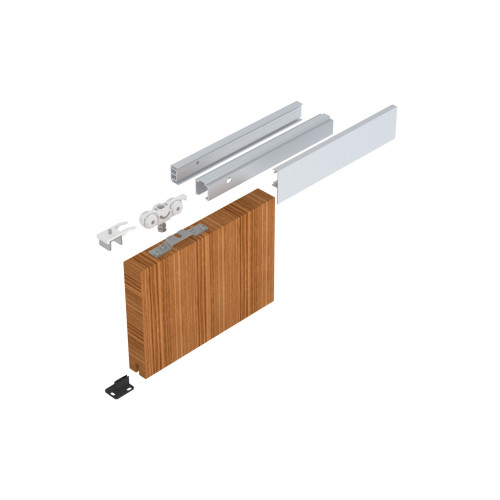

Comprises of: For single leaf application.

• 1 x Track no. 53/73
• 1 x 15mm Spacer Profile drilled.
• 1 x Clip on pelmet: 65mm
• 1 x End cap set
• 2 x Trolleys no. 73 with ball bearing, M8 x 35 support screw and flange
• 2 x Door holder no. 65P
• 1 x Smart bottom guide no. H 212s

Track length options:

• 2000mm
• 2500mm*
• 4000mm*

https://www.woelm.de/helm-schiebebeschlaege/innenschiebetueren/produkt/helm-mkl80h114-schiebetuersystem.html

In most instances the use of a Sliding Door offers an additional area of usable floor space within the room.   They can also be used to divide up larger rooms into smaller more functionable spaces.   The possibilities are endless.

Due to the identical design of the two (partial) series, which are based on a classic C-Profile track, many additional components (E.g. Clip on pelmets, and space profiles) can be used universally.

Originally developed for interior sliding doors made of timber, the series was then expanded to include glass clamping bars that enable the use of all-glass doors without any glass processing.
