HELM GT-L 50 G 412 'Glass' Sliding Door Kit Incl. Track, Pelmet, Damper & Soft Close - Max. 50kg
The HELM GT series offers intelligent sliding solutions for a bright, light-filled room design and also meets the highest (openness) requirements, regardless of single or double leaf all-glass doors, in combination with a fixed glass side panel, with fanlight or flush with ceilings without visible hardware parts.
The GT-L 50 is used for light interior sliding doors up to 50kg while the the GT-L 80 is used for up to 80kg. The GT-S 150 was developed for heavier doors up to 150kg.
The compact trolleys with integrated clamping bar and the open tracks, which allow the leaf to be hooked in from the front, provide decisive advantages not only for installation but also for subsequent adjustment.
Depending on the finish, the hardware is suitable for both toughened safety glass (TSG) and laminated safety glass (LSG) and can even be used for Timber doors with suitable adaptors.
In most instances the use of a Sliding Door offers an additional area of usable floor space within the room. They can also be used to divide up larger rooms into smaller more functionable spaces. The possibilities are endless.
HELM Sliding Door products are precision made in Germany using the latest techniques and high quality workmanship. Designed for simple fixing and ease of use.
-
Max. Weight: 50kg.
-
Door thickness: 8/10mm TSG.
-
Leaf width: Minimum 700mm (With damper and soft closing device on both sides).
-
Trolleys: Height adjustable even afer installation, with load bearing rocker for a long service life.
-
Damper and soft closing device with fluid technology: Catch the leaf in a controlled manner, pull it smoothly into the end position and hold it securely. Can also be used with small leaf widths due to the new design.
-
Smart Guide: Self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises.
-
Tested according to DIN EN 1527:2013 (200,000 cylcles).
Can be supplied with damper and soft Close only on one side (Min. Door width 650mm) or without damper and soft Close.
HGT.L50.G.412.**.1.04.2000

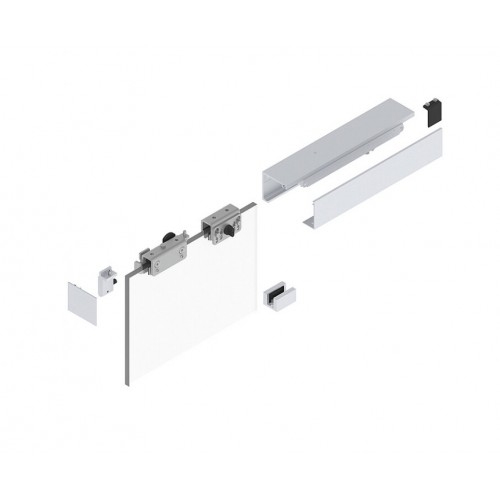

Comprises of:
-
1 x GT-L Track 2000MM - Wall mounting
-
1 x GT-L Pelmet
-
4 x GT-L Clamp adaptor for pelmet
-
1 x Pair of cover caps
-
2 x GT-L 50 Trolleys
-
2 x GT-L 50 Damper and soft closing device with release bolt. HELM GT-L End stop left / right
Finishes available: **
-
Aluminium, Silver Anodised (41)
-
Aluminium, Matt Black Coated (73)
- Brand: HELM
- Product Code: Please select available options first
- Availability: Please select available options first
