D&E Angled Stud To Suit Res-Lok Face Fix Window Restrictor

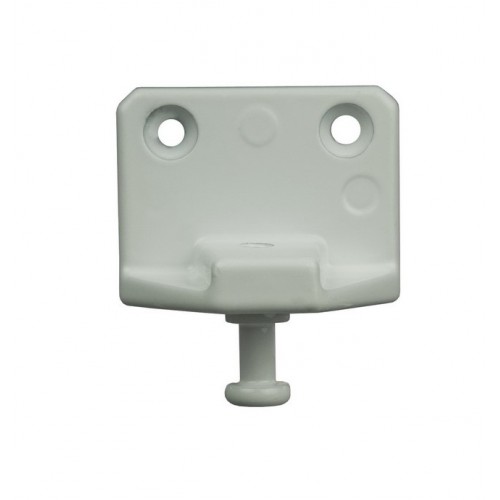

D&E Angled stud to suit JBC360 & JBC361 Res-Lok face fix window restrictor

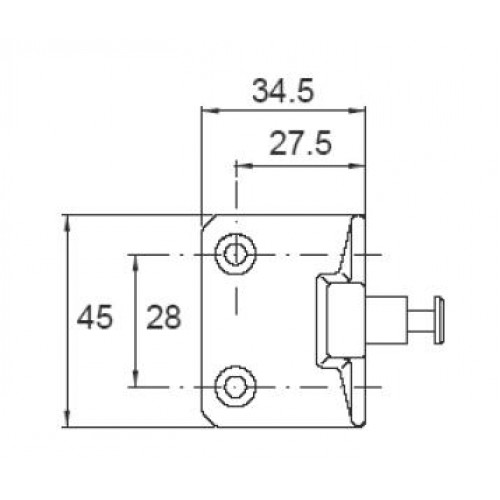

There are 6 sizes to choose from t o establish the correct length of stud required, measure the offsset from the sash from the frame (Dim. X on the diagram below) and select the correct angled stud plate from the list  below.

• JBC362/5/WT - 0-5mm offset stud
• JBC362/10 /WT - 5-10mm offset stud
• JBC362/15/WT - 10-15mm offset stud
• JBC363/20/WT - 15-20mm offset stud
• JBC363/25/WT - 20-25mm offset stud
• JBC363/30/WT - 25-30mm offset stud

Finish: White

Construction: Stainless Steel & Zinc Alloy
