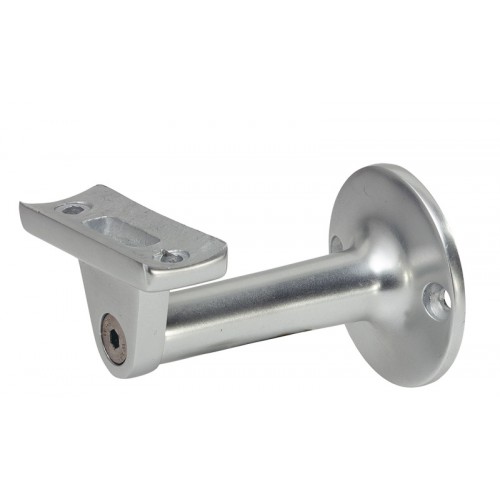

KWS Handrail Bracket M10x80 Fixing - Projection: 55 / 75 or 100mm

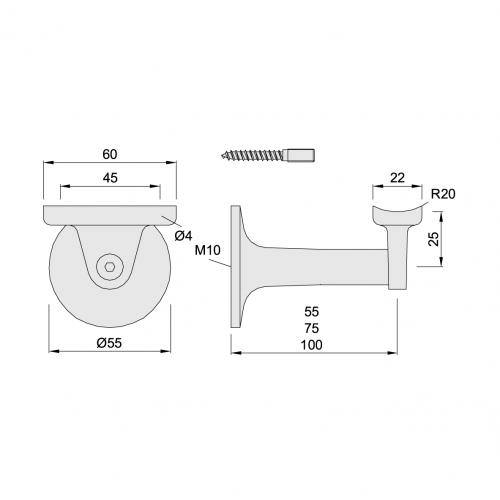

KWS Handrail Bracket - models with 55mm, 75mm or 100mm clearance.

• K4530 - 55mm - Concave rest R = 20mm
• K4536 - 55mm - Flat rest
K4531 - 75mm - Concave rest R = 20mm
• K4537 - 75mm - Flat rest
• K4532 - 100mm - Concave rest R = 20mm
• K4538 - 100mm - Flat rest

For building in by hanger bolt M10x80.

Made of Aluminium.

Mounting

The distance between the brackets should be between 800 - 1200mm depending on the load and the wall condition.
