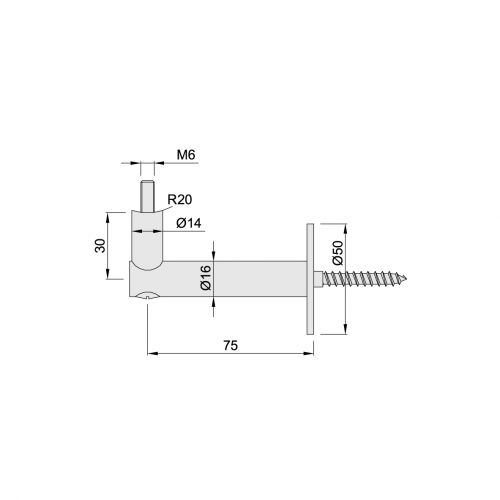

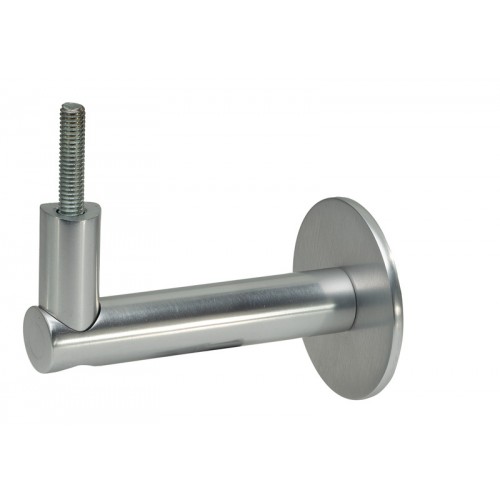

KWS Handrail Support Bracket - 75mm Projection
KWS Handrail Bracket - 75mm clearance.
Handrail fixed with an M6 screw -
-
K4545 - Concave rest R = 20mm
-
K4546 - Flat rest
For building in by hanger bolt M8x70.
Made of Steel, Aluminium, Brass or Stainless Steel.
Mounting
The distance between the brackets should be between 800 - 1200mm depending on the load and the wall condition.
