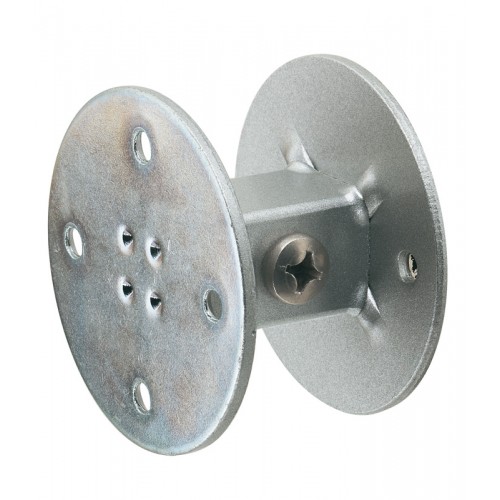

KWS Handrail Support Bracket - Projection: 40 / 55 / 75 or 100mm

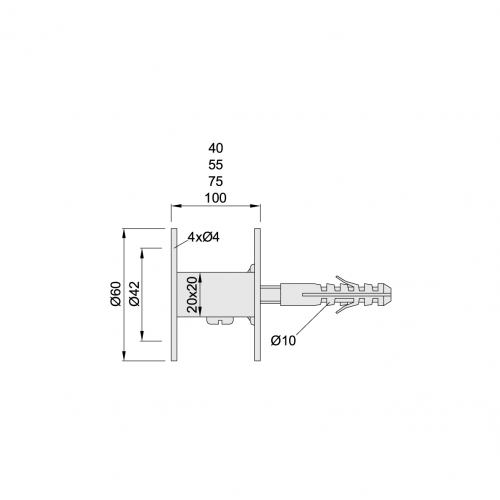

KWS Handrail brackets - 40mm, 55mm, 75mm or 100mm clearance - 2 parts.

• K4503 - 40mm - with fixings
• K4505 - 55mm - with fixings
• K4507 - 75mm - with fixings
• K4543 - 100mm - with fixings

Made of Steel

Mounting

Bore holes are marked at the wall positions planned for the handrail with a distance spacing of 800 - 1200mm. The wall is drilled and plugged and the brackets are screwed on. The counter pieces are fixed on the corresponding positions on the handrail, pressed into the wall brackets and joined with a screw.
