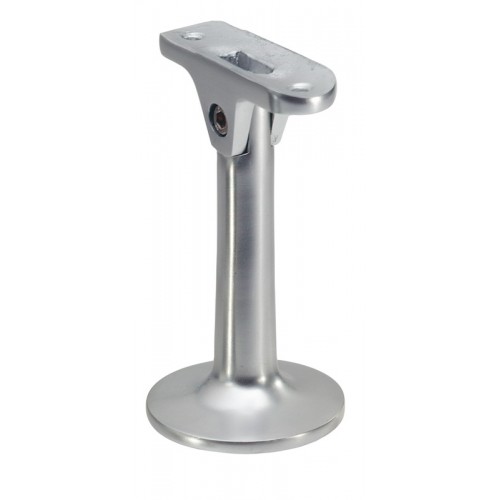

KWS Vertical Mounted Handrail Support Bracket - Projection: 55 / 75 / 100 / 120 or 150mm

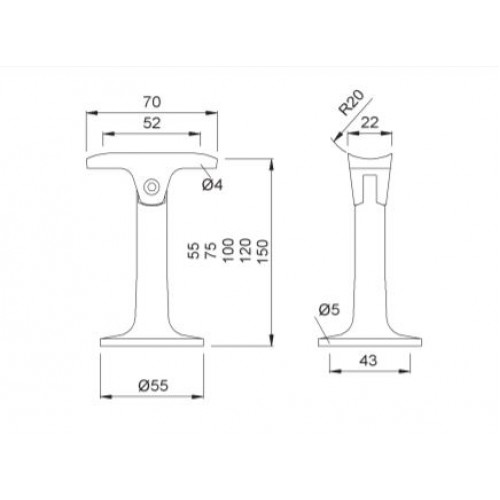

KWS Handrail Bracket - models with 55mm, 75mm, 100mm, 120mm or 150mm clearance.

Below all have a Concave rest R = 20mm

For building in by hanger bolt M10x80

• K4580 - 55mm
• K4581 - 75mm
K4582 - 100mm
• K4583 - 120mm
• K4584 - 150mm

Face Fix - Two countersunk screw holes for screw fixing

• K4585 - 55mm
• K4586 - 75mm
• K4587 - 100mm
• K4588 - 120mm
• K4589 - 150mm

Made of Aluminium.

Mounting

These handrail brackets are only suitable for vertical mounting. The distance between the brackets should be 800 - 1200mm depending on the load.
