KWS Modular 45 Deg End Support - Concealed Fix

KWS Modular System - 45° Slanting End Support for pull handle

• K8717 -  30mm x 1.5 tube
• K8049 - 33.7mm x 2.0 tube
• K8362 - 35mm x 1.5 tube
• K8318 - 40mm x 2.0 tube
• K8050 - 42.4mm x 2.0 tube
• K8H62 - 35mm wood
• K8H18 - 40mm wood

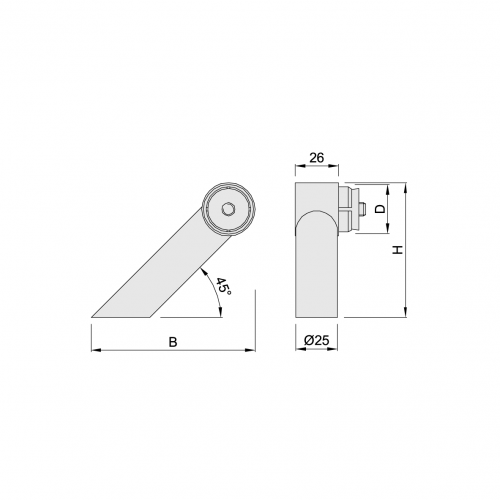

45° Slanting end support series RS for concealed fixing, of stainless steel.

Clamping element of aluminium.

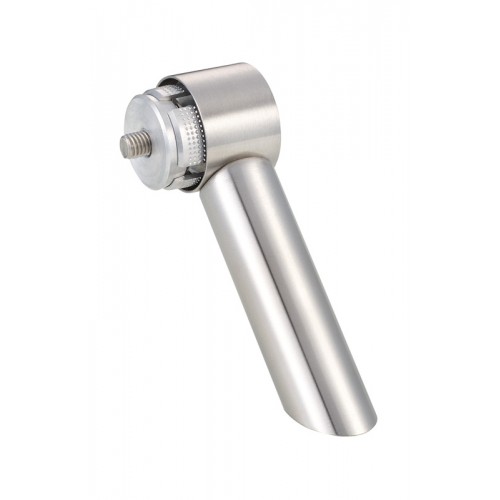

Indication of right or left hand required. (Image shows LH)

To make a single pull handle you will require: 2 x end supports, one length of tubing (to suit end support diameter) and any mid-supports that are required (depends on the length) plus you will need the relavant fixings.

Finish:

Satin Stainless Steel (Brushed)

For more information or help with ordering please contact us on 01733 896123
