KWS K8B74 Fixing Kit - S24/M8 - Single Side Fixing For WS Series Modular Handles

KWS Pull Handle Fixings - Single side fixing

K8B74 - S24 - M8 Single handle fixing kit

Specially for pull handles from the KWS 'WS' series modular system (face fixing).

Single handle fixing kit with self tapping sleeve for doors of aluminium, PVC and timber, for female part (LT)

Made of Aluminium or Stainless Steel.

Mounting

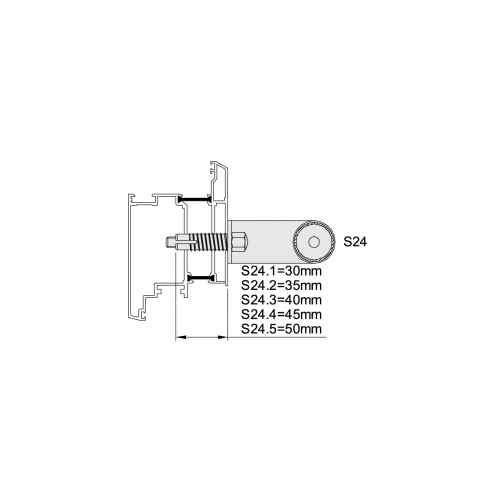

Choose the right length of sleeve:- For profile doors the sleeve has to be long enough to hit the main cavity. - For solid timber doors use a 30 or 35mm sleeve (bore 5 mm deeper).

Bore holes: M8 = Ø12 mm,

Bore 12mm diameter holes on one side of the door. Insert the self-tapping sleeve using an allen key (SW 8) until the upper edge levels with the door. Then screw in the M8 grub screw using an allen key (SW 4 ) until it protrudes 30mm. Then put on the door pull and screw on the cup nuts and tighten with a spanner (SW 13).
