BSW 060-3 Project Hinges

D&E BSW 060-3 Heavy Load Concealed Bearing Butt Hinge - CE EN1935 (Removable Pin)

D&E BSW project hinge 060-3 is designed for use with mounting plate VZK060/100-120 or VZK060/160 for steel frames and flush doors. Once installed on the mounting plate, the 3D adjustment allows easy installation in the trickiest of environments.

The other factor of these hinges is that manufacture of the door and frame set can be carried out in seperate locations and then married up on site with the minimum of effort.

These hinges have maintenance free sliding bearings.

Sizes available

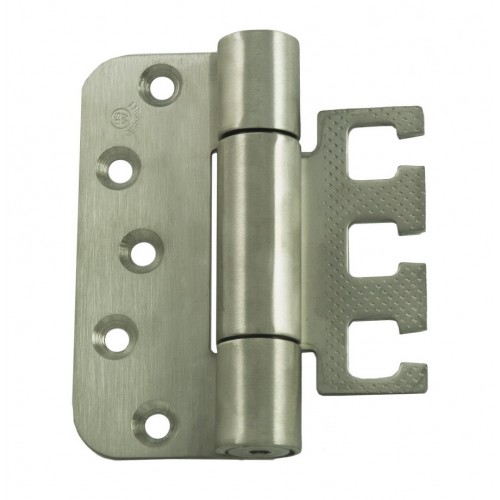

• 060-3/100 - 100mm high - 120kg per pair (GRADE 13)

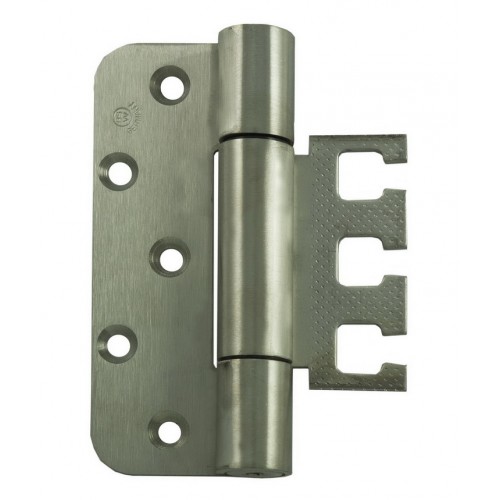

• 060-3/120 - 120mm high - 140kg per pair (GRADE 13)

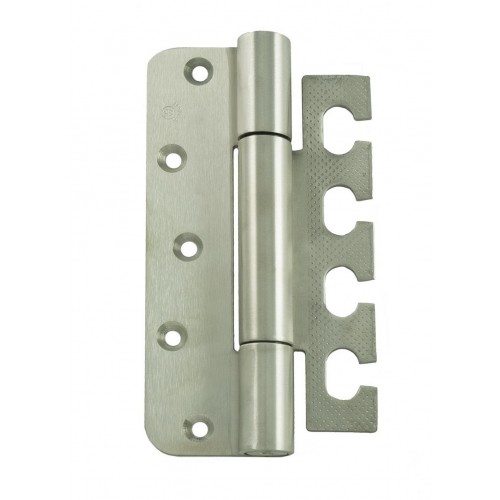

• 060-3/160 - 160mm high - 200kg per pair (GRADE 14)

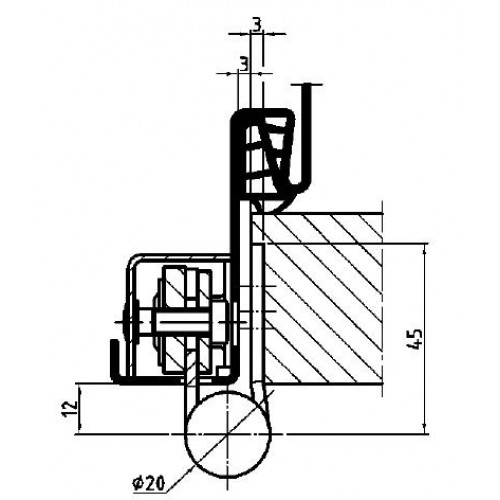

Knuckle diameter - 20mm

SS Thickness 3mm

Finishes available

• Polished Gold Plated*
• PVD Gold *
• Satin Stainless Steel (Grade 304)
• Polished Stainless Steel (Grade 304)
• Zinc / Galvanised

*Finishes maybe subject to quantity
