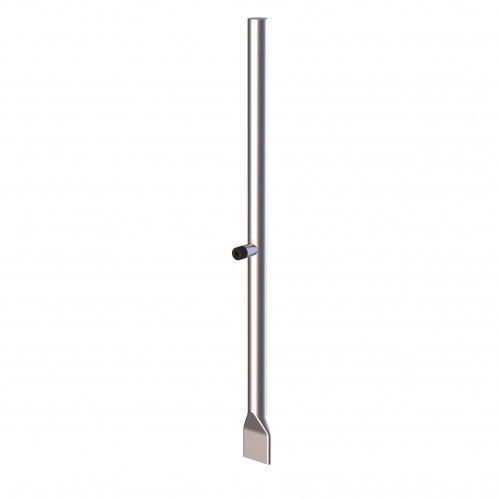

KWS Post C/W Door Buffer - Build-In

KWS Post and door buffer 'Build-In'

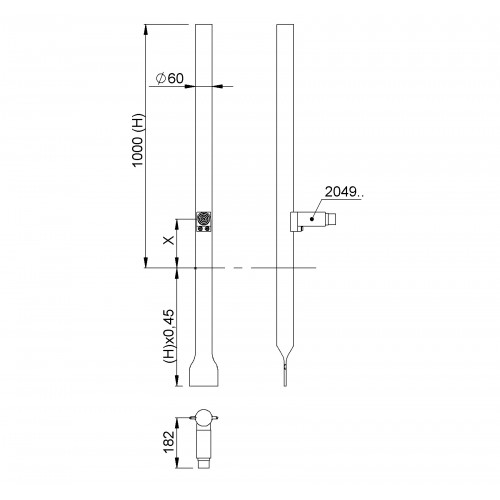

• K2910 - Supplied with KWS Door Buffer K2049.
• K2911 - Supplied with KWS Door Buffer K2051.

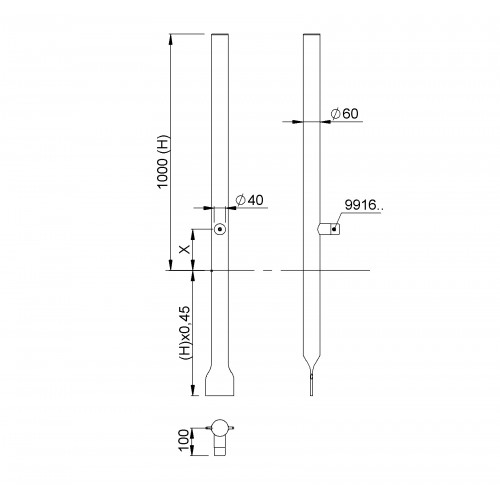

• K2912 - Supplied with KWS Door Buffer K9916.

Post to be cemented into the ground.

Post Height

Standard height supplied: H = 1000mm.

(Recommended maximum height 1100mm).

Height of door buffer - To be confirmed at the time of order.

Must be at least 50mm shorter than dimension H, recommended height minimum of 55mm and maximum 300mm.

Material

• Stainless Steel.
• Buffer: Rubber - Black (Spring-loaded for K2910 & K2911).

Application

• Door weight up to 100kg.

Mounting

Cement the post into the floor at the desired stop point, which should be the furthest possible distance from the door hinge.

For K2911... The door buffer K2051 can be adjusted perpetually up to 10 degrees to the right and left.
