'Asgard' 27HZA Chameleon Automatic Flush Deadbolt
D&E 'Asgard' Automatic Flush Bolt - 27HZA

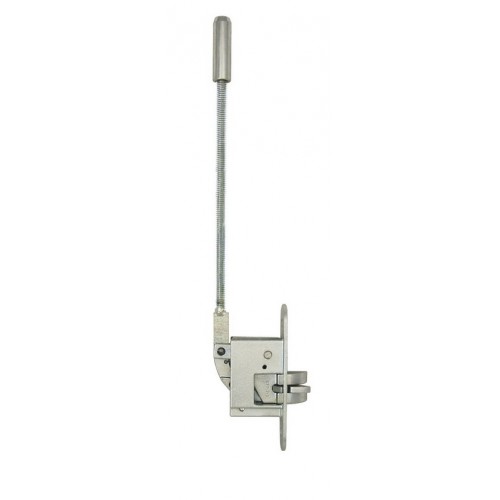

The "Asgard" Chameleon automatic flush deadbolt. With the secondary leaf in the closed position and when the primary leaf closes, the latch is depressed and the shoot bolt is thrown.
This flush bolt is mainly used for doors made of Steel or Aluminium profiles with or without joint edges.
A door selector should be used with this product.
Handing (See diagram shown in images)
-

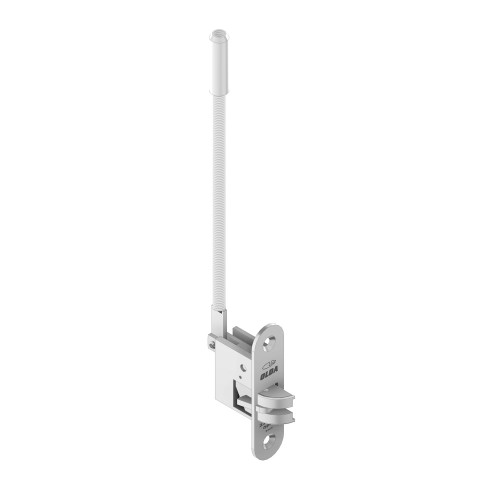

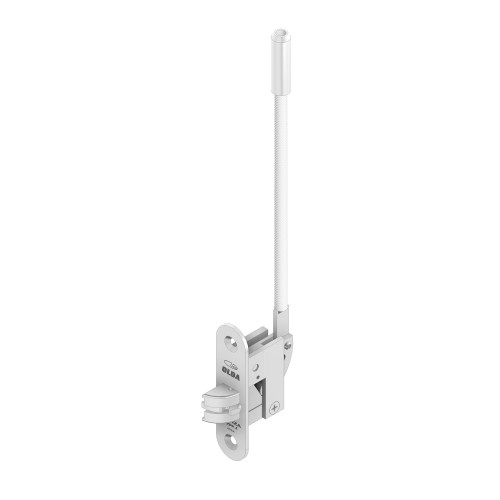

Supplied Handed - Left hand (Type 1) or Right hand (Type 2)
(If you are installing one at the top & one at the bottom of the door you would need one of each hand)
Size
-
Forend: 97mm high x 25mm wide
-
Case depth: 47.5mm Including Forend 2.5mm
-
Backset: 42.5mm including forend
Dimensions
- Bolt Diameter: 12mm
- Bolt Length: 42mm
- Bolt Projection: 15mm Adjustable -9 / +9mm
- Overall Length (bolt and rod): 195mm Adjustable
Finish
- Steel, Zinc Plated
Supplied with OLDA GT12 guide tube, OLDA LT12 Lock Tube, OLDA SP20 strike plate & fixings.
Installation:
OLDA 27HZA is fitted recessed in the edge of the door, either flush with cut-out or without cut-out for the forend.
Fixed with two countersunk 4.8 x 25mm screws.
Warranty:
All mechanical "OLDA" branded products have a 36 month factory warranty.
Technical Datasheet
- Brand: Olda
- Product Code: Please select available options first
- Availability: Please select available options first
