D&E Yale 'Firemaster' 12" sprung all aluminium combination letter plate.

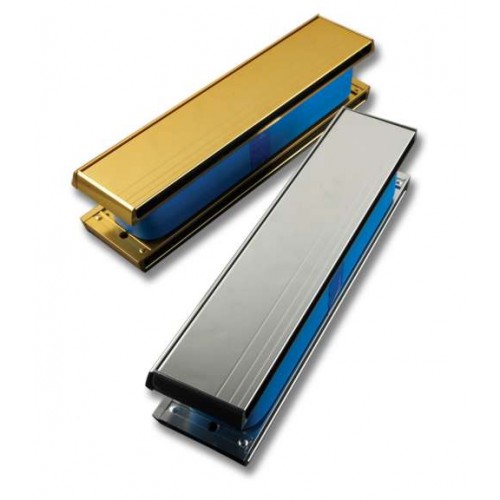

D&E P207 'Firemaster' 12" Sprung All Aluminium Combination Letter Plate

Features:

• Provides in excess of 30 minutes integrity under BS476 PT 20/22.
• Tested with positive pressure and can be located in any area of the door.
• Smoke seals fitted as standard.
• Curved frame design.
• Robust all aluminium construction.
• To Suit Door Thickness: 40 to 80mm (Midrail).

Dimensions:

• Frame Dimensions: 303 x 70mm
• Aperture Dimensions: 255.5 x 37.7mm

Dimensions may vary.

Testing:

• Endurance tested to 20,000 cycles.
• Fully compliant with BS 2911 and BS 476 P22.
• Corrosion tested to (96 hours. NSST).
• Certifire approved CF219.
• 25 year surface finish guarantee.

Finishes available:

P207/48/F1 - Silver anodised (F1) frame & flap
P207/48/F1P - Polished silver anodised (F1P) frame & flap
P207/48/F3P - Polished gold anodised (F3P) flap
