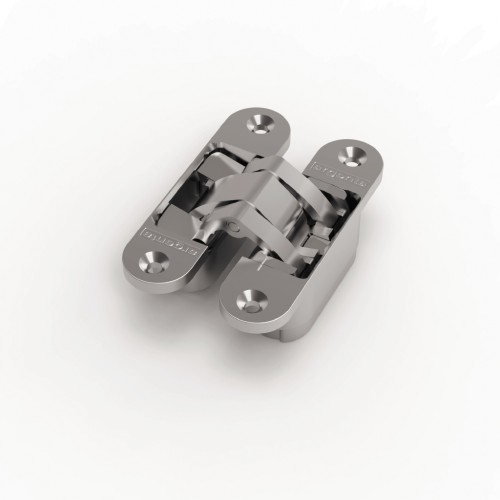

ARLU 'MEDIUM' Invisible / Concealed and 3D Adjustable Hinge

The ARLU (Argenta) Invisible 'Medium' is a highly compact, 3D adjustable hinge. The screws are always visible to give these hinges a technical look.

These Standard invisible hinges are reversible (i.e. they can be used on both Left and Right hand opening doors) and are easy to fit.

• 3D adjustable (height, depth, and pressure)
• Universal: for use on both Left and Right hand opening doors
• Compact dimensions
• Fully supported with lubricantion-free synthetic joints
• 180 degree opening angle

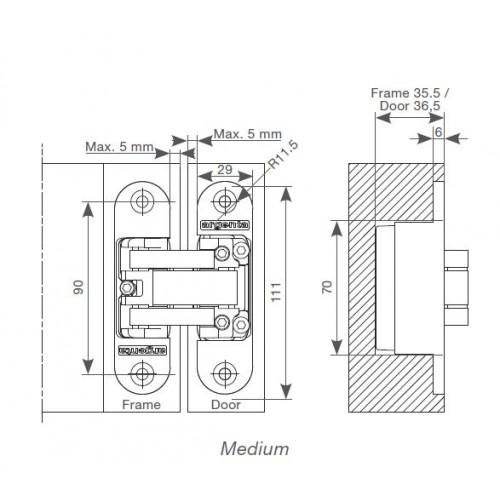

Invisible Medium

• Material: Zamak
• Door Thickness: min. 37mm
• Door Weight (2 pcs) : up to 40kg
• Door Weight (3 pcs) : up to 55kg
• Height adjustment: -1,5 / +1,5 mm
• Width adjustment: -2,5 / +2,5 mm
• Depth adjustment: -1,5 / +1,5 mm
• Fire Resistant: EI30 (ARG-MED EI30/*)
• Screw Dia: max. 5

Fire rated EI30 models are supplied complete with the Intumescent to suit.

*Finish

• Matt Chrome Plate (MCP)
