H448-449/G Gate Pivot Hinge - 1000kg / 2000kg

D&E Gate Pivot Hinge - 1000KG or 2000KG - Galvanised

The D&E Pivot set is manufactured from steel and incorporates a needle bearing system that offers ultra smooth operation. Designed for use on gates manufactured from 70mm box selection.

H448449/GV (Line drawing image 2)

• Rating : Extra Heavy Duty
• Bearing system: needle bearings
• Door Weight: 1 set - 1000Kg max
• Max. Width: 3000mm*
• Packaging: 1 Set

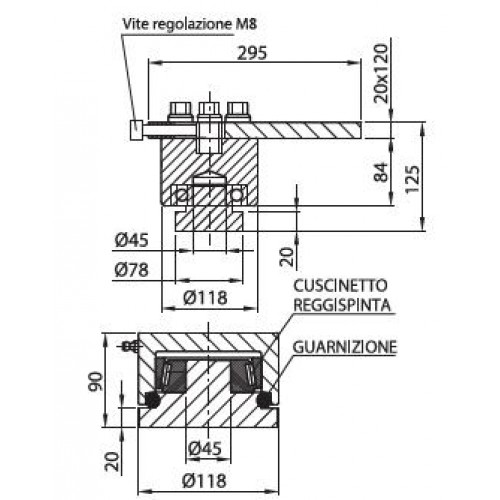

H448449G/GV (Line drawing image 3)

• Rating : Extra Heavy Duty
• Bearing system: needle bearings
• Door Weight: 1 set - 2000Kg max
• Max. Width: 3500mm*
• Packaging: 1 Set

* For gates that are at the maxiumum weight & width we would recommend using the safety cable GF540.
