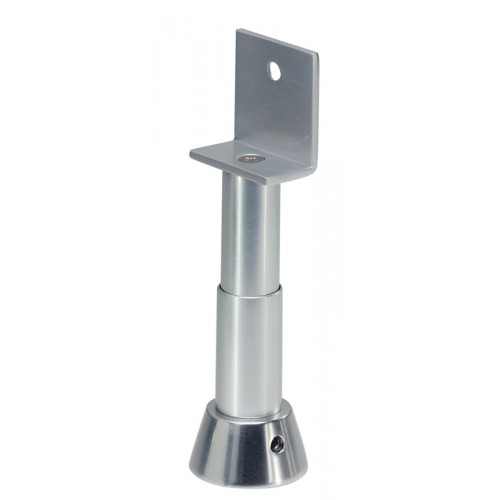

KWS Adjustable Partition Support

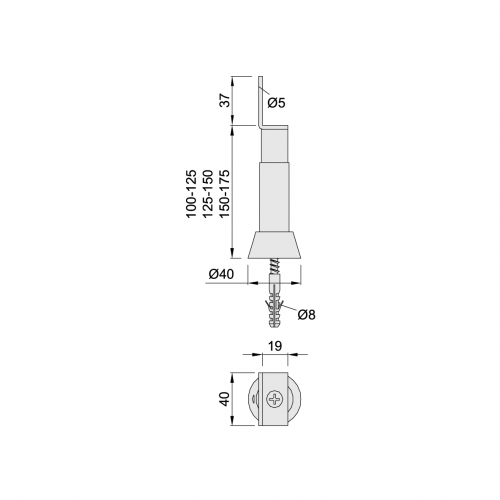

KWS Adjustable Partition Support for 100-125mm, 125-150mm & 150-175mm height.

Below all have a L-Shaped Rest

• K4241 - 100-125mm high
• K4242 - 125-150mm high
• K4243 - 150-175mm high

For building in, with fixings

Made of Aluminium or Stainless Steel

Mounting

Screw floor sleeve with inserted washer on the floor, insert support, turn it by means of a spanner to the desired height and tighten with round nut, secure support with clamping screw.

To offset possible deviations when boring the floor plug hole every partition wall support is supplied with an additional eccentric disc, which is used instead of the washer.Deviations of up to 4 mm from the centre can be equalised.

With every packaging unit mounting intructions are included.
