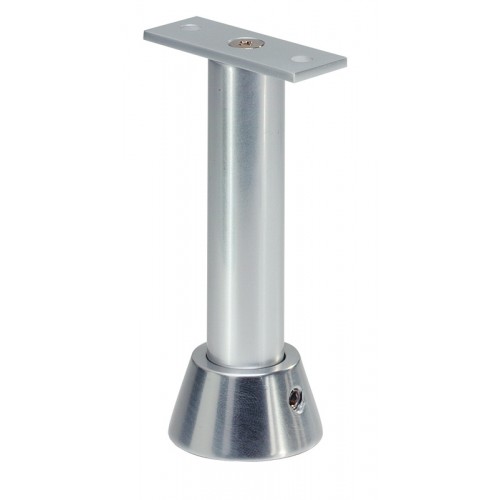

KWS Partition Support

KWS Partition Support for 100mm, 120mm & 150mm height.

Below all have a Flat Rest

• K4201 - 100mm high
• K4202 - 120mm high
• K4203 - 150mm high

For building in, with fixings

Made of Aluminium or Stainless Steel

Mounting

Screw floor rosette with inserted washer on the floor, insert support and secure with clamping screw. To offset possible deviations when boring the floor plug hole every partition wall support is supplied with an additional eccentric disc, which is used instead of the washer.

Deviations of up to 4 mm from the centre can be equalised. The support can be shortened by 5 or 10 mm in height to offset floor unevenness.

With every packaging unit mounting intructions are included.
