KWS Flush Handle For Glass & Timber Sliding Doors

KWS Flush Pull Handles for glass & timber sliding doors

K5252 - Screw on fixing

65mm Diameter.

Suitable for 8mm to 13mm thick glass.

Timber doors 38-45mm thick.

Material:

• Aluminium

Mounting

Bore diameter of glass door = 50mm.

Insert one flush part and tighten counter part with grub screw.

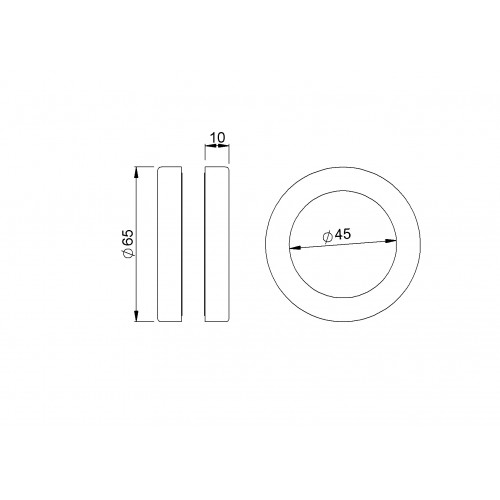

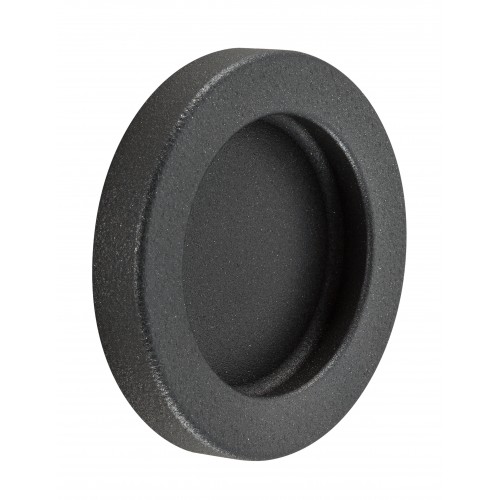

K5253 - Self adhesive fixing.

65mm Diameter.

Suitable for glass and smooth timber doors.

Material:

• Aluminium

Mounting

Clean the door (Glass door e.g. with special UV cleaner, acetone or isopopaol). Remove foil from adhesive points and stick on the flush pull at it's position. Press on both flush parts firmly, especially on the adhesive points.

Allow adhesive points to cure for 24 hours.
