KWS 'ERGO' E300 82.8202 Angled Grab Rail (135 Degrees) With Rossettes
KWS ‘Ergo System® E300’
82.8202 E300 Angled Grab Rail 135° with Rosettes
- Suitable for Shower, Bathtub, WC area
- optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
- Supplied c/w fixings
- With cover plates for concealed fixing (70mm Ø)
- On 450mm length and above rails are compatible with suspended seats, shower rails and storage trays from the Ergo System® E300
- Non-Handed due to identical arm lengths
- Special lengths available on request

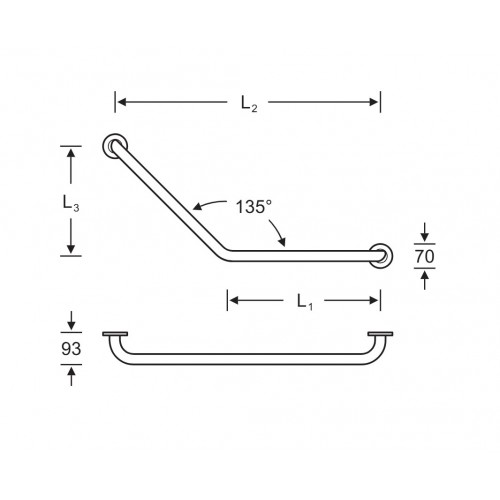

- L1 = 300mm, L2 = 512mm, L3 = 210mm
- L1 = 450mm, L2 = 772mm, L3 = 320mm
Load-bearing capacity:
Internally tested up to 200kg
Material: Stainless steel
Cover plates: Stainless steel
Wall brackets: Zinc die cast, black grey (RAL7021)
* Finishes:
- Matt Stainless Steel, Supports, functional components, etc. in black grey (RAL 7021)
- Polished Stainless Steel, Supports, functional components, etc. in black grey (RAL 7021)
KWS Catalogue Page
Fitting Instructions
