KWS 'ERGO' E300 82.8212 Angled Handrail (90 Degrees) With Rossettes

KWS ‘Ergo System® E300’

82.8212 E300 Handrail Combination 90° with Rosettes

Suitable for Shower, Bathtub area

Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees

With cover plates for concealed fixing (70mm Ø)

Supplied c/w fixings

Compatible with suspended seats, shower rails and storage trays from the Ergo System® E300

Special lengths available on request

Available on request in U-Form

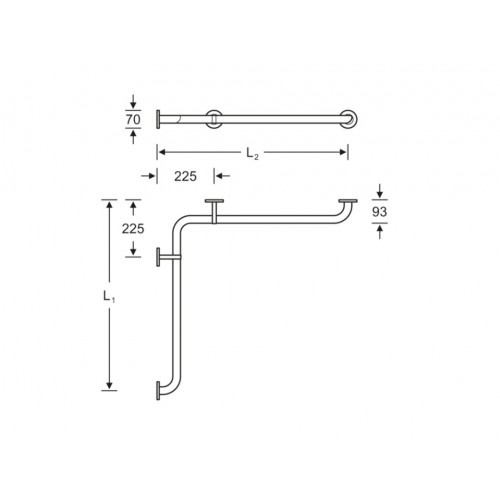

Lengths available:

L1 = 750mm, L2 = 750mm - Equally long handrail segments on both walls.

L1 = 975mm, L2 = 975mm - Equally long handrail segments on both walls.

L1 = 750mm, L2 = 975mm - Longer handrail segment on the right wall.

L1 = 975mm, L2 = 750mm - Longer handrail segment on the left wall.

L1 = 750mm, L2 = 1125mm - Longer handrail segment on the right wall.

L1 = 1125mm, L2 = 750mm - Longer handrail segment on the left wall.

Handing: Viewing direction towards the corner of the room.

Image showing: K82 8212 00100 6204

Material: Stainless Steel

Cover plates: Stainless steel

Wall brackets: Zinc die cast, black grey (RAL7021)

Load-bearing capacity:

Internally tested up to 200kg

* Finishes:

Matt Stainless Steel, Supports in black grey (RAL 7021)

Polished Stainless Steel, Supports in black grey (RAL 7021)

Finish

Length
