KWS 'ERGO' E300 82.8224 Drop Down Support Rail Spring Loaded

KWS ‘Ergo System® E300’

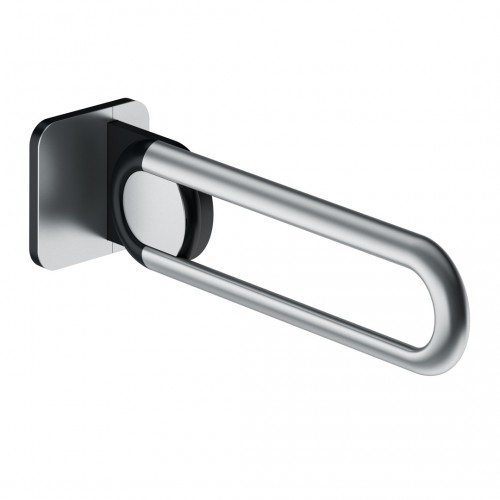

82.8224 E300 Drop-down support rail spring loaded

• Suitable for washstand and WC area
• Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees

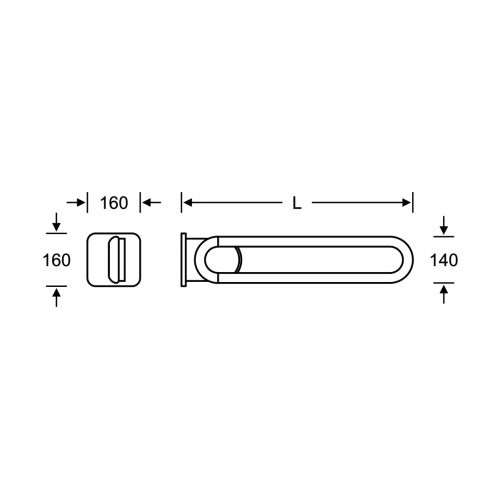

• With cover plate (160 x 160mm) for concealed fixing
• Spring adjustable
• Supplied c/w fixings
• Compatible with TECE-Gerontomodul or TECE Profil 9.042.016
• Meets the requirements of DIN 18040, SIA 500, and ONORM B1600
• Special lengths up to 900mm available on request

Lengths available:

• L = 600mm installation right (viewing direction to the washstand / WC)
• L = 600mm installation left (viewing direction to the washstand / WC)
• L = 700mm installation right (viewing direction to the washstand / WC)
• L = 700mm installation left (viewing direction to the washstand / WC)
• L = 850mm installation right (viewing direction to the washstand / WC)
• L = 850mm installation left(viewing direction to the washstand / WC)
• L = 900mm installation right (viewing direction to the washstand / WC)
• L = 900mm installation left (viewing direction to the washstand / WC)

Load-bearing capacity:

Internally tested up to 200kg

Supports up to 60Kg of lateral load

Material: Stainless steel

Cover plates: Stainless steel

Wall brackets: Zinc die cast, black grey (RAL7021)

* Finishes:

• Matt Stainless Steel, Supports, functional components, etc. in black grey (RAL 7021)
• Polished Stainless Steel, Supports, functional components, etc. in black grey (RAL 7021)
