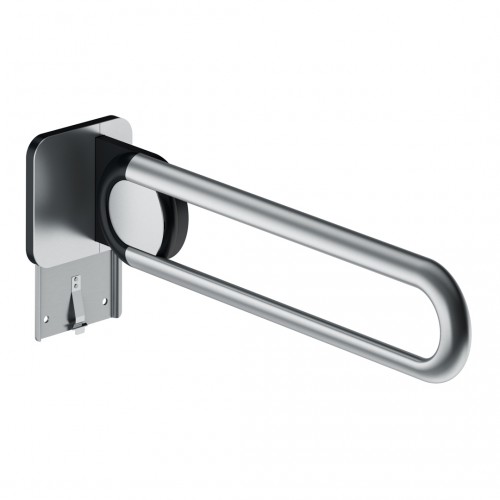

KWS 'ERGO' E300 82.8224 Drop Down Support Rail A-FLEX Spring Loaded

• KWS ‘Ergo System® E300’

82.8224 E300 Drop-down support rail     “A-Flex” spring loaded

• Suitable for washstand and WC area
• Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
• With cover plate (160 x 160mm) for concealed fixing
• Spring adjustable
• Can only be used in combination with support plate "A-FLEX" from the Ergo System® E300 available separately
• Compatible with TECE-Gerontomodul or TECE Profil 9.042.016
• Meets the requirements of DIN 18040, SIA 500, and ONORM B1600
• Special lengths up to 900mm available on request

Lengths available:

• L = 700mm installation right (viewing direction to the washstand / WC)
• L = 700mm installation left (viewing direction to the washstand / WC)
• L = 850mm installation right (viewing direction to the washstand / WC)
• L = 850mm installation left(viewing direction to the washstand / WC)
• L = 900mm installation right (viewing direction to the washstand / WC)
• L = 900mm installation left (viewing direction to the washstand / WC)

Load-bearing capacity:

Internally tested up to 200Kg

Supports upto 60Kg of lateral load

Material: Stainless Steel

Cover plates: Stainless Steel

Finishes:

• Matt Stainless Steel
• Polished Stainless Steel
