KWS 'ERGO' E300 82.8224 Drop Down Support Rail Spring Loaded For Side Installation

KWS ‘Ergo System® E300’

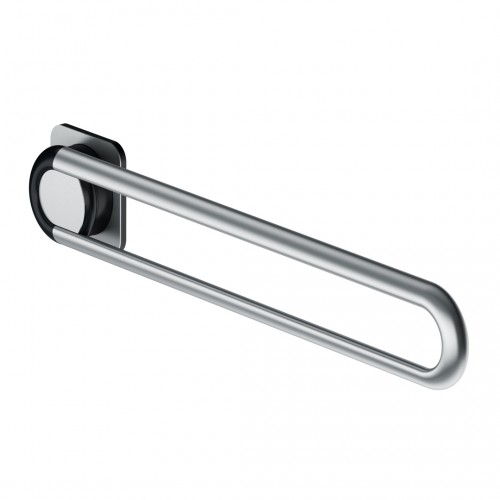

82.8224 E300 Drop-down support rail spring loaded for side installation

• Suitable for washstand and WC area
• For side installation (e.g. to reduce supply shaft widths for WC basins with a maximum projection of 550mm)
• Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
• With cover plate (160 x 160mm) for concealed fixing
• Spring adjustable
• Supplied c/w fixings
• Meets the requirements of DIN 18040, SIA 500, and ONORM B1600

Lengths available:

• L = 930mm installation right (viewing direction to the washstand / WC)
• L = 930mm installation left(viewing direction to the washstand / WC)
• L = 980mm installation right (viewing direction to the washstand / WC)
• L = 980mm installation left (viewing direction to the washstand / WC)

Load-bearing capacity:

Internally tested up to 200kg

Supports up to 60Kg of lateral load

Material: Stainless steel

Cover plates: Stainless steel

Wall brackets: Zinc die cast, black grey (RAL 7021)

* Finishes:

• Matt Stainless Steel, Supports, in black grey (RAL 7021)
• Polished Stainless Steel, Supports, in black grey (RAL 7021)
