HELM HSP300 Hardware For Sliding Gates Up To 200kg

HELM 'SP 300' Hardware For Sliding Gates Up To 200KG

HELM sliding gate kits, supplied as pre-assembled complete sets.

Supplied with profile(s) with fixed lengths of 2000mm.

Extension kits and individual parts are also available (profiles, joints, trolleys, end stops etc...).

Compliant with corrosion resistance class 3 (According to EN 1670: classes 1-4).

Mounting Options:

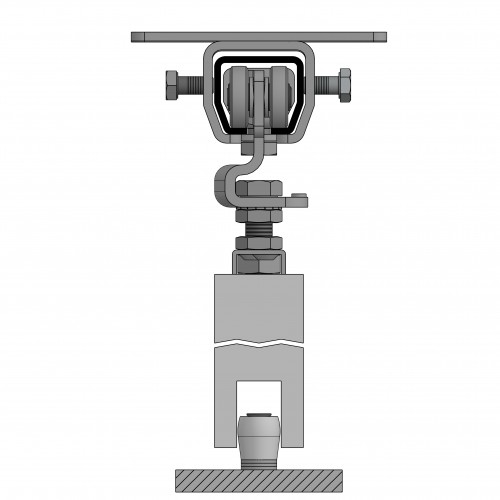

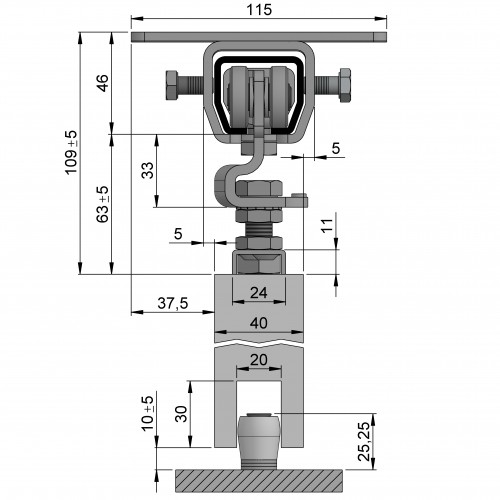

• Ceiling mounted (D)

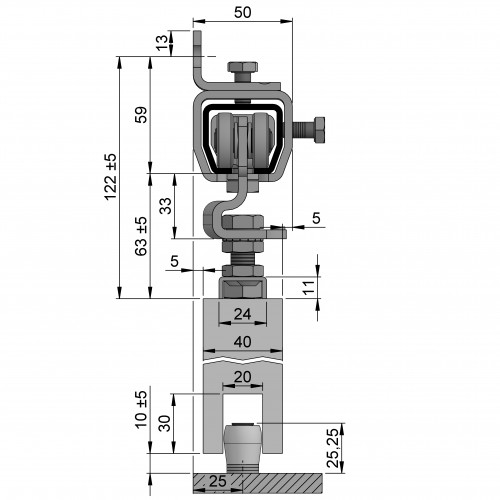

• Wall mounted (W)

Kit contents for 'Wall Mounted' option:

• 2 x HELM 300 Profile 2000mm
• 6 x HELM 301 Wall Sleeve
• 1 x HELM 303 Mounting / Coupling Sleeve
• 2 x HELM 391 Trolley
• 2 x HELM 393 Flange
• 2 x HELM 300P End Stop
• 1 x HELM 358 Roller Guide

Finish:

• Steel, blue galvanised
