HELM HSP400 Hardware For Sliding Gates Up To 400kg

HELM 'SP 400' Hardware For Sliding Gates Up To 400KG

HELM sliding gate kits, supplied as pre-assembled complete sets.

Supplied with profile(s) with fixed lengths of 2000mm.

Extension kits and individual parts are also available (profiles, joints, trolleys, end stops etc...).

Compliant with corrosion resistance class 3 (According to EN 1670: classes 1-4).

Mounting Options:

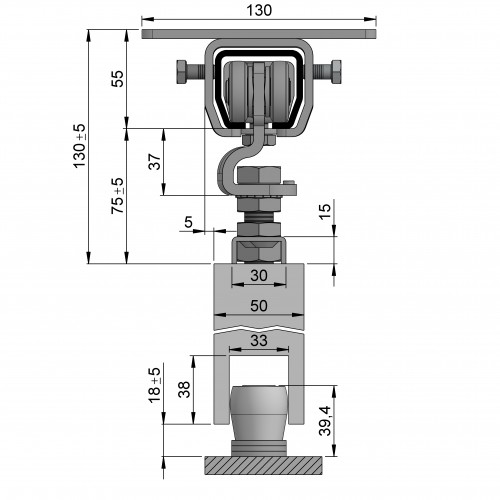

• Ceiling mounted (D)

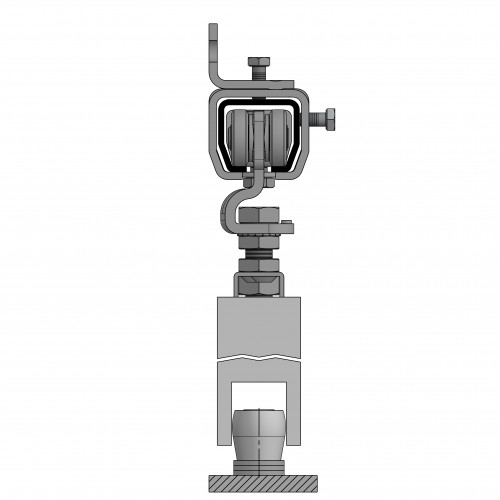

• Wall mounted (W)

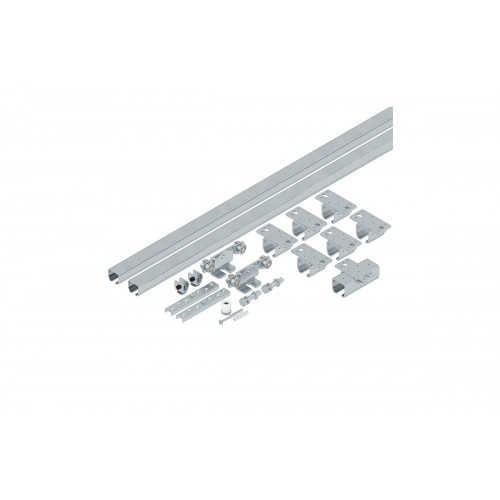

Kit contents for 'Wall Mounted' option:

• 2 x HELM 400 Profile 2000mm
• 6 x HELM 401 Wall Sleeve
• 1 x HELM 403 Mounting / Coupling Sleeve
• 2 x HELM 491 Trolley
• 2 x HELM 493 Flange
• 2 x HELM 400P End Stop
• 1 x HELM 458 Roller Guide

Finish:

• Steel, blue galvanised
