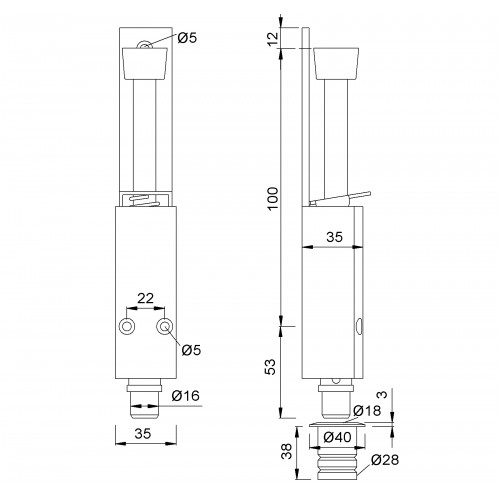

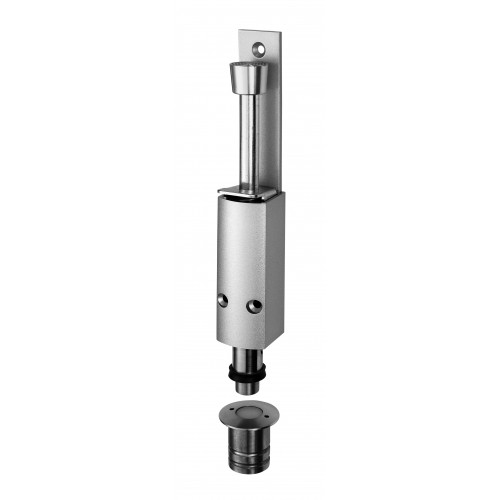

KWS Foot Operated Door Holder With Floor Socket - 100kg

Kick down door holders -

• K1240 - 30mm throw
• K1242 - 60mm throw
• K1244 - 90mm throw
• K1246 - 120mm throw
• K1248 - 150mm throw (with 2 additional bore holes)

Housing of aluminium.

All other metal parts of steel, zinc-plated.

Operation

The door is opened up to the flush-mounted socket. By kicking down the bolt the door is held open. For releasing the door a gentle push on the chek plate of the holder suffices.

Mounting

The door holder is screwed on the door with the four screws in combination with a mounting plate at the greatest possible distance from the door hinge. The distance from bottom edge of door to foot is to be 5 - 10 mm. The floor socket is inserted into the floor at the desired arresting point. Every unit package includes fixing instructions, boring template.
