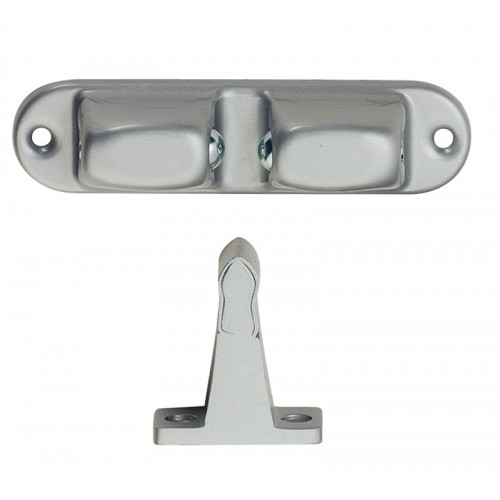

KWS Adjustable Roller Ball Door Catch

KWS Door holders:

• K1055 for 55mm distance.
• K1083 for 70mm distance.

For screwing on.

Application

• Door Width - up to 1000mm
• Door Height - up to 2000mm
• Door Weight - up to 80kg (Holding Force 80-220N)
• Door Closer Suitable

Operation

By simply pushing or pulling the door it is held or released.

Mounting

The holder is fastened on the door at the greatest possible distance from the door hinge and the block is screwed on the wall at the corresponding position. A horizontal fixing of the holder on the door ensures the correct operation also in case of doors lifting or sagging slightly later. By means of adjustment screws the ball pressure can be set.
