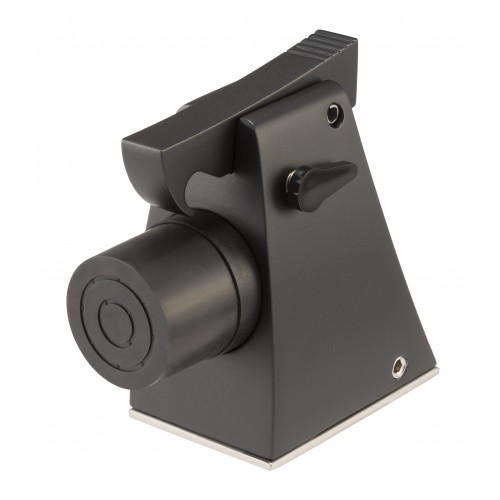

KWS Floor Mounted Door Buffer/Holder - 120kg
KWS Door holder with hook.
Rubber buffer in black, spring-loaded.
Holding mode can be deactivated.
Supplied with fixings.
Material:
Made of Aluminium.
Roller block: Steel (Enamelled & Colour coated finishes) or Stainless steel (Anodised finishes).
Buffer: Rubber buffer in black, spring-loaded.
Application- Door Width - up to 1200mm
- Door Height - up to 2200mm
- Door Weight - up to 120kg
- Door Closer Suitable
Operation
To hold the door in place, push it against the holder until the hook is engaged on the roller block. Actuating the hook while simultaneously pressing the door against the holder disengages the holding mode.
The lever, switched from position A to B (see product drawing), deactivates the holding mode: In this case, the door holder only has the function of a spring-loaded door buffer.
Mounting
Screw the holder mounting plate on the floor with two screws and inserted plugs at the desired arresting point which should be the greatest possible distance from the door hinge. Attach the door holder and fix it with the two screws on the side. The roller block is fixed at the corresponding position on the door.
- Brand: KWS
- Product Code: Please select available options first
- Availability: Please select available options first
