KWS Flush Ring Handle - 70mm x 200mm

KWS Flush Ring Handle 70 x 200mm

Available with either 7mm or 8mm follower or fixed spindle.

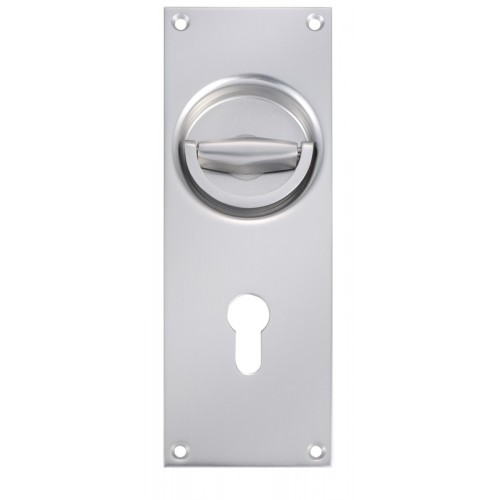

Available with or without a key way - Photo shows with PZ Euro Profile Cylinder cut out.

Models -

• K5101 - with 7mm follower
• K5102 - with 7mm fixed spindle
• K5001 - with 8mm follower
• K5002 - with 8mm fixed spindle

Ring handle fixed pivoting, spindle permanently riveted on K5102 & K5002.

Material:

1. Enamelled & Colour coated finishes - Grip recess made of steel and ring made of aluminium.
2. Anodised finishes - Grip recess and ring made of aluminium.
3. Brass finishes - Grip recess and ring made of brass.

Keyway

Without keyway or with keyway e.g. No keyway (Blank), Euro profile cylinder (PZ), single tumbler (BB), KABA (Special order only P.O.A.).

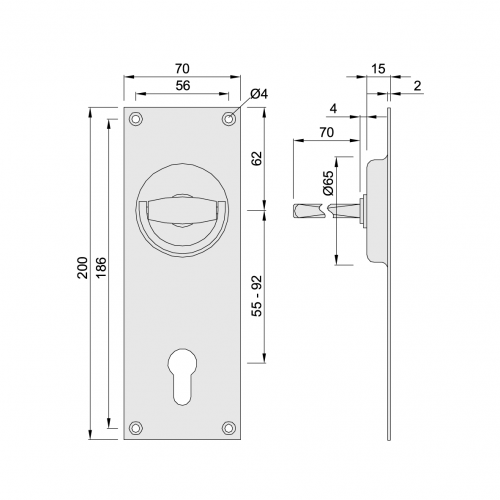

• Smallest distance for Euro profile cylinder (PZ) cut-out is 55mm
• Biggest distance for Euro profile cylinder (PZ) cut-out is 92mm

Rotary handle model available see K5047, K5048, K5147 & K5148.

Note

There has to be sufficient insertion depth for flush mounting.
