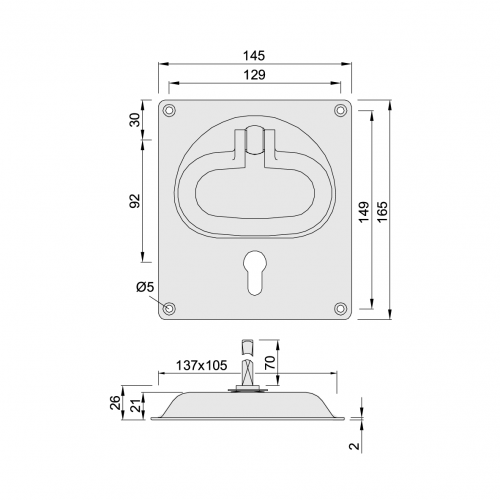

KWS Flush Ring Handle - 145 x 165mm

KWS Flush Ring Handle 145mm x 165mm in either 8mm or 9mm follower or fixed spindle.

Models -

• K5164 - with 8mm follower
• K5165 - with 8mm fixed spindle
• K5166 - with 9mm follower
• K5167 - with 9mm fixed spindle

Ring handle fixed pivoting, spindle permanently riveted on K5165 & K5167.

1. Enamelled & Colour coated finishes - Grip recess made of steel with ring made of aluminium.
2. Anodised finishes - Grip recess and ring made of aluminium.

Keyway

Without keyway (Blank) or with keyway (Cut out below ring handle) profile cylinder PZ92mm.

Alternative model with keyway above ring handle see K5160, K5161, K5162 & K5163

Note

There has to be sufficient insertion depth for flush mounting.
