KWS Flush Ring Handle - 100mm x 200mm

KWS Flush Ring Handle 100 x 200mm with 10mm follower or fixed spindle. (7mm, 8mm or 9mm models are available see K5104, K5105, K5004, K5005, K5007 & K5008)

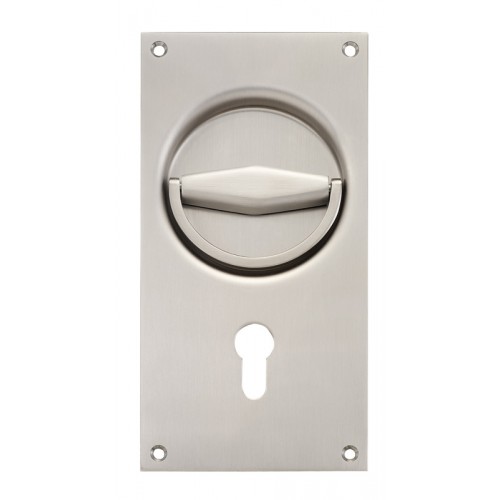

Available with or without a key way - Photo shows with PZ Euro Profile Cylinder cut out.

Models -

• K5010 - with 10mm follower
• K5011 - with 10mm fixed spindle

Ring handle fixed pivoting, spindle permanently riveted on K5011.

Material:

Enamelled & Colour coated finishes - Grip recess made of steel, with ring made of aluminium.
1. Anodised finishes - Grip recess and ring made of aluminium.
2. Brass finishes - Grip recess and ring made of brass.

Keyway

Without keyway or with keyway e.g. No keyway(Blank), profile cylinder (PZ), single tumbler (BB), KABA (Special order only P.O.A).

• Smallest distance for profile cylinder (PZ) cut-out is 55mm
• Biggest distance for profile cylinder (PZ) cut-out is 92mm

Note

There has to be sufficient insertion depth for flush mounting.
