KWS Recessed Handle Without Keyway

KWS Flush Lever Handle 170mm x 170mm in either 8mm or 9mm follower or fixed Spindle.

Models -

• K5061 - with 8mm follower
• K5062 - with 8mm fixed spindle
• K5064 - with 9mm follower
• K5065 - with 9mm fixed spindle

Flush mounted, fixed pivoting handle, spindle permanently riveted on K5062 & K5065.

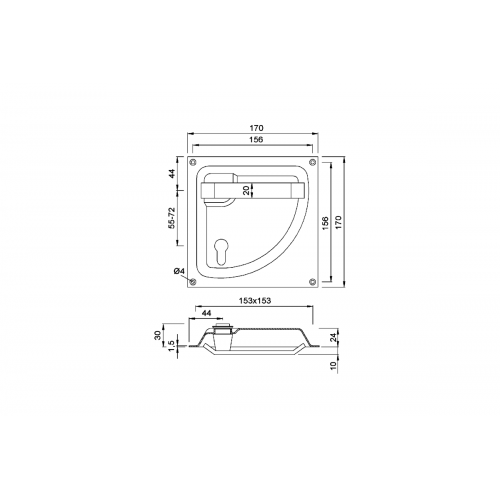

NB: The Stainless Steel model is a different design of lever, see images and line drawing.

Material:

1. Enamelled & Colour coated finishes - Grip recess made of steel, with flush lever handle made of aluminium.
2. Anodised finishes - Grip recess and flush lever handle made of aluminium.
3. Stainless Steel finishes - Grip recess & flush lever handle made of Stainless Steel.

Keyway

Available without a keyway e.g. No keyway (Blank).

Also available with keyway see K5061 - Profile cylinder (PZ), single tumbler (BB), KABA (Special order only P.O.A.).

• Smallest distance for profile cylinder (PZ) cut-out is 55mm
• Biggest distance for profile cylinder (PZ) cut-out is 72mm

Note

There has to be sufficient insertion depth for flush mounting.

Image shows right hand door fitting.
