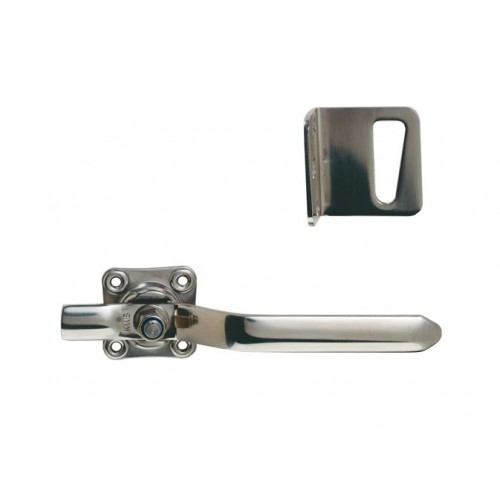

KWS Surface Fixing Locking Handle with strike plate

KWS Locking handle with angular strike plate for face fixing.

For one sided door operation.

Made of steel or stainless steel.

• K6129 - With angled strike plate for face fix, when ordering please indicate Left hand or Right hand.

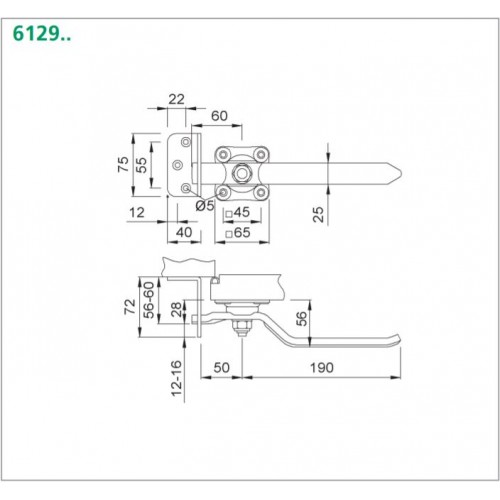

Technical picture shows locking handle for Right hand.

Mounting

The locking handle is screwed on according to the dimensions on the technical drawing & strike plate screwed on in the relevant position.

The lock should be installed in such a way that the lever is level in the closed position & facing downwards when in the open position. The actuation path of the lever is at 90 degrees.
