KWS K8B81 Fixing Kit - S1/M12 Single Side Bolt Through Fixing

KWS Pull Handle Fixings - Single side bolt through fixing

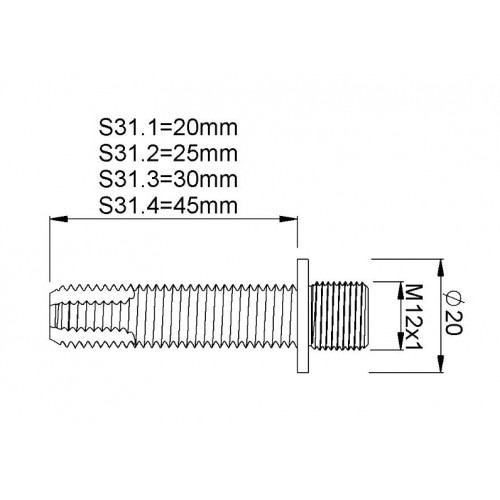

K8B81 - S31 - M12 Single handle fixing kit for 25/30/35/40 and 50mm Ø handles.

Door handle fixing S31 with self-tapping screws.

One kit required per handle for single side fixing of door handles on Aluminium, plastic profiles with insulation cavity as well as solid timber doors.

One female part (LT) with two fixing points.

Installation:

Bore holes:

On one side of the door through the pre-cavity into the main cavity (See installation instructions).

Insert the self-tapping screws using an Allen Key (SW 6). Remove the fastening elements from the door handle, dismantle (remove M8 insert) and screw on the fixing rings (M12 x 1). Put on the door handle and tighten the side clamping screws.
