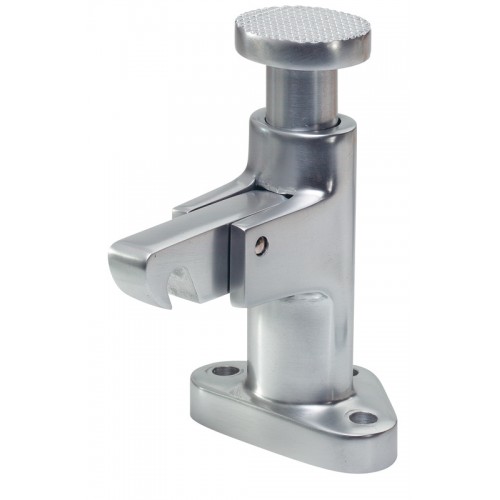

KWS Floor Mounted Foot Operated Door Holder - 80kg

KWS Door holders:

• K1049 - With anchor bolt for building in.
• K1050 - For face fixing.

Anchor bolt (for K1049) of steel, hot-dip galvanised

Material:

Made of Aluminium.

Roller block: Steel (Enamelled & Colour coated finishes) or Stainless steel (Anodised finishes).

Application

• Door Width - up to 1000mm
• Door Height - up to 2200mm
• Door Weight - up to 80kg.
• Door Closer Suitable

For holding the door it is moved towards the holder unit the hook catches. For releasing the door it is sufficient to push the button gently while pushing the door against the holder at the same time.

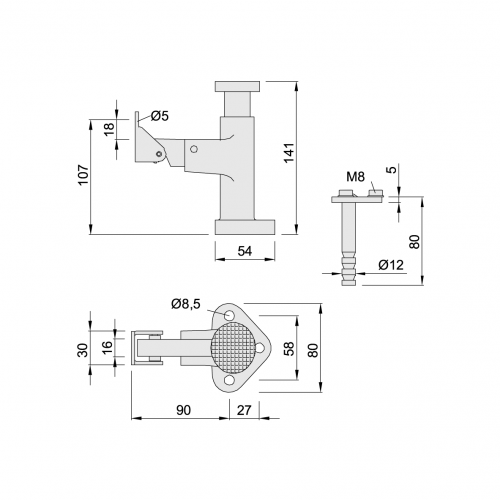

The holder is fixed on the floor at the desired arresting point which should be the greatest possible distance from the door hinge in combination with an anchor bolt (for 1049..) or with plugs (for 1050..). At the corresponding position the roller block is fixed on the door.
