D&E Fire Rated (MK2) Door Selector

Fire Rated Model (MK2) - UKCA, CE & UL Marked

The DS*FD door selector ensures that a pair of self closing fire doors with rebated meeting stiles or security astragals will always shut in the correct sequence automatically, no matter which door is opened first.

Successfully tested to BS EN 1158

The MK2 fire door coordinator has a surface mounted rebate, therefore it's not going to damage the fire doors frame structure & can be used on any door material.

This fire rated door selector ensures that the doors do not incorrectly overlap once the pair of doors are shut. This is particularly important for fire-rated doors and self-latching security doors as it maintains the doors seal.

If the double doors do not shut in the correct sequence, this can create a gap between the two doors, allowing a fire to spread. This product is therfore an integral product to ensure fire safety within all buildings.

Suitable for all door types.

• Max. door weight 120kg.
• Door width 700mm - 1000mm
• Door Thickness Min. 38mm - Max. 58mm
• Rebate - Max. 25mm
• Door closer suitable - Power Sizes 3-5
• 10 year Guarantee

The types of doors the MK2 door selectors are specified on are:

• Fire and non-fire regulated doorsets (Timber and Steel)
• Rebated doors
• Flush doors with security astragals
• Escape doors with a vertical rod device and horizontal rim exit device
• Flush doors that are used with a mortice lock/latch
• Flush doors with automatic flush bolts

Benefits:

• Easy to fit and low maintenance
• Certified worldwide
• Smart, lightweight and discrete product
• Efficent and cost effective
• Wide range of finishes
• Made in Britain

For applications under difficult or unusual conditions please supply all available information for confirmation of specification.

Note: The surface mounted rebate catch must be fitted to meet regulations and for the product to work effectively.

Supplied complete with 4" arm as standard, fixings and full Installation Instructions.

Finishes available:

• Silver Anodised
• Gold Anodised
• Polished Brass
• Satin Stainless Steel Effect

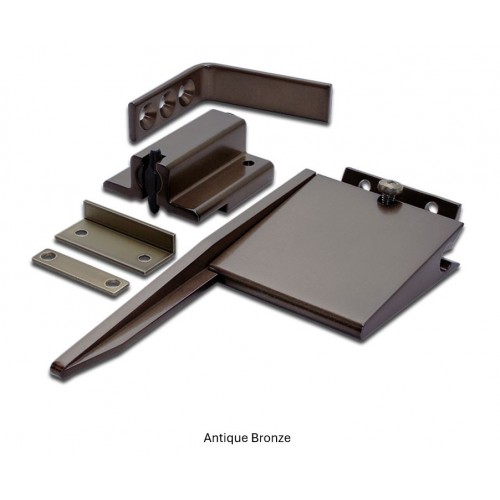

• Antique Bronze
• Black Anodised
• RAL 7012 Anthracite Grey *
• RAL 9016 Traffic White *

*M.O.Q. May apply.

Longer 6" & 8" arms are available for thicker or wider doors and doors with astragals both internally and externally.

These are to order as a seperate item see DSARM, only available in Silver or Stainless steel effect as standard from stock other finishes available to order as a 'Special order item'.

Extended rebated rebates are available to suit cranked astragal and for narrow door rebates - Please contact us for more information.

*Video below shows 'Fire rated' model*
