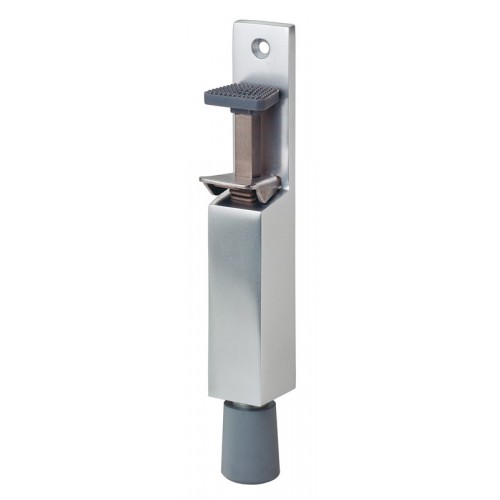

KWS Foot Operated Door Holder - 40kg

KWS Door holders:

Kick down door holders -

• K1033 - 30mm throw bolt stainless steel.
• K1035 - 50mm throw bolt stainless steel.

Housing made from aluminium

Stopper made from rubber, grey

Application

• Door Width - up to 900mm
• Door height - up to 2000mm
• Door weight - up to 40kg
• Door closer suitable

Operation

The door can be held open at any openeing angle. For this the bolt is pushed down until the foot sticks the floor. For releasing the door a gentle push on the check plate suffices.

Mounting

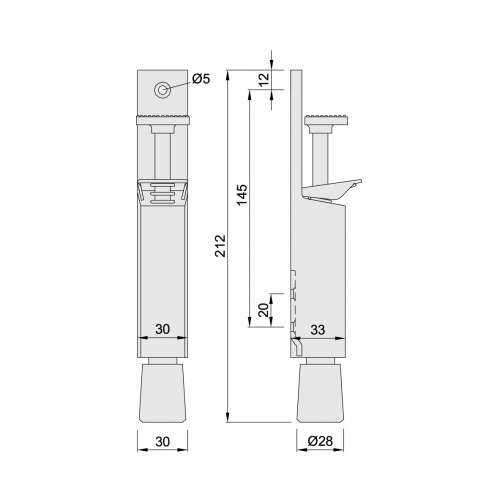

The door holder is screwed on the door with three screws in combination with a mounting plate at the greatest possible distance from the door hinge. The distance from bottom edge of door to foot is to be 5 - 10mm. Every unit package includes fixing intructions and boring template.

The default hub spring increases the contant pressure on the floor.
