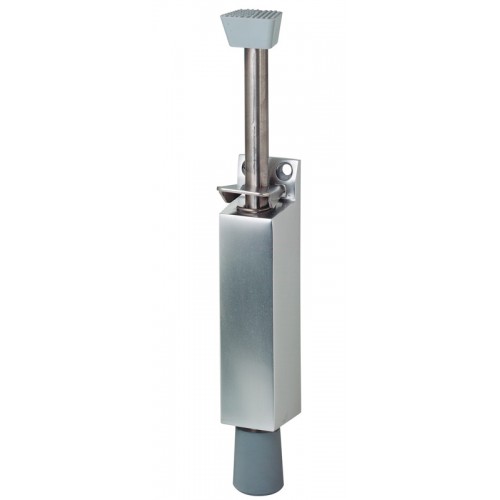

KWS Foot Operated Door Holder - 80kg
KWS Door holders:
Kick down door holders -
- K1044 - 60mm throw.
- K1045 - 90mm throw.
- K1046 - 120mm throw.
Housing made of aluminium.
Foot of plastic, grey.
Application
- Door Width - up to 1200mm
- Door Height - up to 2200mm
- Door Weight - up to 80kg
- Door Closer Suitable
Operation
The door can be held open at any opening angle. For this the bolt is pushed down until the foot sticks on the floor. For releasing the door a gentle push on the check plate suffices.
Mounting
The door holder is screwed on the door with four screws in combination with a mounting plate at the greatest possible distance from the door hinge. The distance from bottom edge of door to foot is to be 5 - 10 mm. Every unit package includes fixing instructions and boring template.
The default hub spring increases the contact pressure on the floor
