KWS 'ERGO' E300 82.8210 Angled Handrail (90 Degrees) With Rossettes

KWS ‘Ergo System® E300’

82.8210 E300 Angled Grab Rail 90° with Rosettes

Suitable for Shower, Bathtub, WC area

Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees

With cover plates for concealed fixing (70mm Ø)

Supplied c/w fixings

Compatible with storage trays from the Ergo System® E300

Special lengths available on request

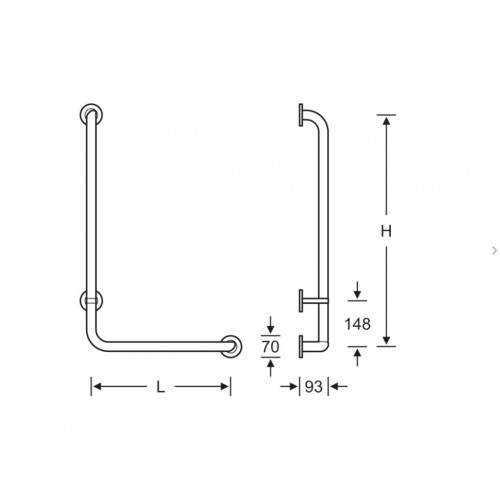

Lengths available:

L = 300mm, H = 748mm - Vertical rail segment on the left or right wall

L = 450mm, H = 1048mm - Vertical rail segment on the left or right wall

L = 500mm, H = 750mm - Vertical rail segment on the left or right wall

L = 600mm, H = 1198mm - Vertical rail segment on the left or right wall

Handing: Viewing direction towards the wall.

Image showing: K82 8210 00201 6204

Material: Stainless Steel

Cover plates: Stainless steel

Wall brackets: Zinc die cast, black grey (RAL7021)

Load-bearing capacity:

Internally tested up to 100kg

* Finishes:

Matt Stainless Steel, Supports in black grey (RAL 7021)

Polished Stainless Steel, Supports in black grey (RAL 7021)
