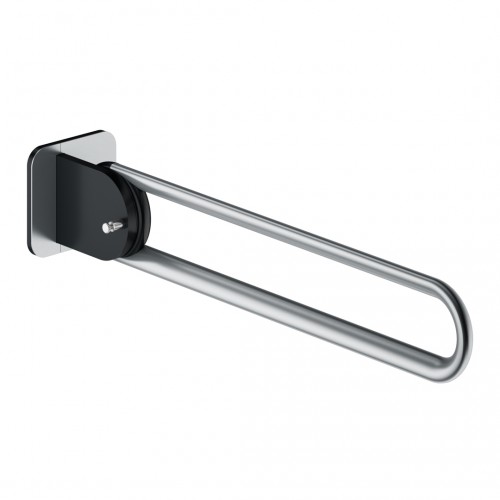

KWS 'ERGO' E300 82.8224 Drop Down Support Rail Spring Loaded With Belt Holder
KWS ‘Ergo System® E300’
82.8224 E300 Drop-down support rail spring loaded with belt holder
- Suitable for the WC area
- Prepared to accomodate the retaining eyelets of support belt 82.8290.00011
- Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
- With cover plate (160 x 160mm) for concealed fixing
- Spring adjustable
- Supplied c/w fixings
- Compatible with TECE-Gerontomodul or TECE Profil 9.042.016
- Meets the requirements of DIN 18040, SIA 500, and ONORM B1600
- Special lengths from 600mm to 900mm available on request
Lengths available:
- L = 850mm installation right (viewing direction to the washstand / WC)
- L = 850mm installation left(viewing direction to the washstand / WC)
- L = 900mm installation right (viewing direction to the washstand / WC)
- L = 900mm installation left (viewing direction to the washstand / WC)
Load-bearing capacity:
Internally tested up to 200Kg
Supports upto 60Kg of lateral load
Material: Stainless Steel
Cover plates: Stainless Steel
Wall brackets: Zinc die cast, black grey (RAL7021)
* Finishes:
-
Matt Stainless Steel, Supports, in black grey (RAL 7021)
-
Polished Stainless Steel, Supports, in black grey (RAL 7021)
KWS Catalogue Page
Fitting Instructions
