KWS 'ERGO' E300 82.8224 Drop Down Support Rail Spring Loaded With LED Function

82.8224 E300 Drop-down support rail spring loaded with LED function button

• Suitable for washstand and WC area
• Optimal grip and support: elliptical hand grip shape due to an oval tube (36.5 x 22 mm) angled at 45 degrees
• With cover plate (160 x 160mm) for concealed fixing
• Spring adjustable
• LED Function button (Red / White) features both an opening and closing function
• Cable routing with free cable end for wall connection
• Supplied c/w fixings
• Compatible with all standard concealed cisterns with electrical control
• Compatible with TECE-Gerontomodul or TECE Profil 9.042.016
• Meets the requirements of DIN 18040, SIA 500, and ONORM B1600
• Available on request with a cable recess in the substructure for concealed cable routing

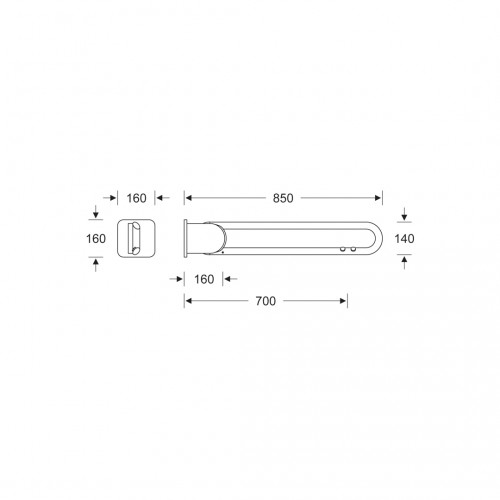

Lengths available:

L = 850mm installation right (viewing direction to the washstand / WC)
L = 850mm installation left(viewing direction to the washstand / WC)

Load-bearing capacity:

Internally tested up to 200kg

Supports up to 60Kg of lateral load

Technical data:

Spiral cable length (from outlet): 1200mm

Degree of protection: IP67

Contact ratings: 32 V AC, 400mA / 50 V DC, 100mA

Contact resistance: Max. 50m?

Bounce time: 1 ms

Insulation resistance: 1 G?

Dielecttric strength: 1.000 V AC

Actuation force: 3N

Material: Stainless steel

Cover plates: Stainless steel

Wall brackets: Zinc die cast, black grey (RAL7021)

Function button: Plastic

* Finishes:

• Matt Stainless Steel, Supports, in black grey (RAL 7021)
• Polished Stainless Steel, Supports, in black grey (RAL 7021)
