KWS HD Door Stop / Buffer - Sprung - Door weight upto 100kg

KWS Heavy Duty Door buffers.

Heavy Duty Spring loaded door buffer 'Manufactured In Germany' to suit door weights up to 100kg.

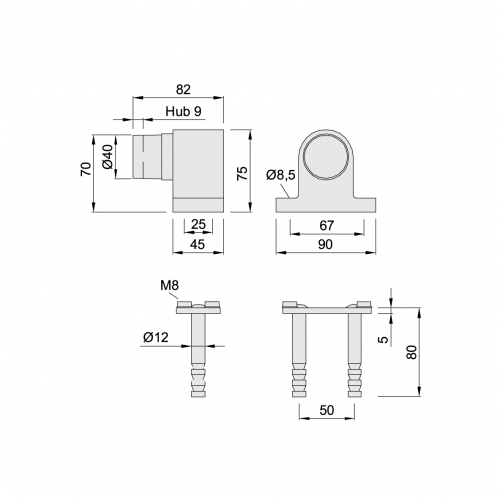

• K2023 - with anchor bolt for casting in.
• K2024 - Without anchor bolt for screwing on.

Made of Aluminium, brass or stainless steel with spring-loaded buffer of rubber, black.

Anchor bolt made of Steel hot-galvanised or stainless steel.

Mounting

With anchor bolt:

Put the provided anchor bolt in the floor and cement it at the desired point which should be the greatest possible distance from the door hinge. After the cement has hardened, screw on the door stop.

Without anchor bolt:

Screw the door stop on the floor with four screws and inserted plugs at the desired point which should be the greatest possible distance from the door hinge.

For height compensation we recommend the additional use of the shim 1610.. (20 mm).
