KWS Wall Mounted Door Buffer/Holder - 60kg

KWS Door holders:

• K1011 - With fixings

Rubber buffer in black, spring-loaded.

Material:

Made of Aluminium.

Roller block: Steel (Enamelled & Colour coated finishes) or Stainless steel (Anodised finishes).

Buffer: Rubber buffer in black, spring-loaded.

Application

• Door Width - up to 1000mm
• Door Height - up to 2200mm
• Door Weight - up to 60kg
• Door Closer Suitable

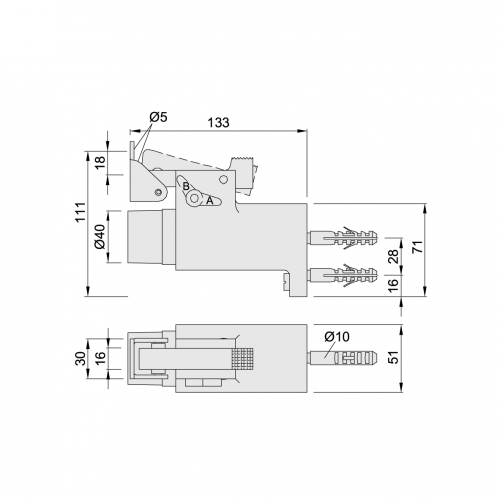

For holding the door it is moved towards the door holder until it is caught by the hook, it is released by actuating the hook while pushing the door against the holder at the same time. The disconnecting lever, moved from position A to B (see drawing) deactivates the holding mode. Thus the door holder only has the function of a spring-loaded stop.

The mounting plate is screwed with two screws in combination with plugs on the wall at the greatest possible distance from the door hinge, the door holder is put on and fastened with two screws. Screw on the roller block at the corresponding position of the door.
