KWS Floor Mounted Door Buffer/Holder - 100kg

KWS Door holders:

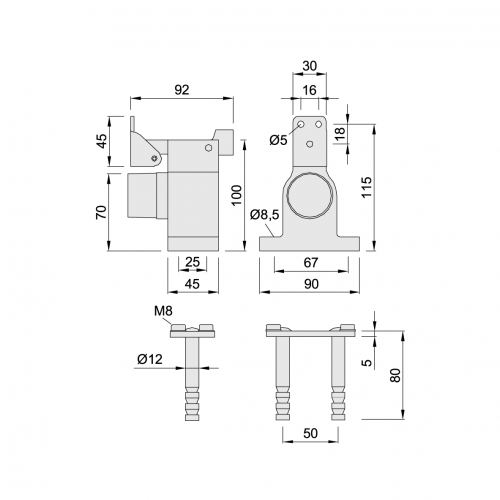

• K1051 - With anchor bolt for building in.
• K1052 - For face fixing.

Rubber buffer in black, spring-loaded, anchor bolt (For K1051) hot dip galvanised.

Material:

Made of Aluminium.

Roller block: Steel (Enamelled & Colour coated finishes) or Stainless steel (Anodised finishes).

Buffer: Rubber buffer in black, spring-loaded.

Application

• Door Width - up to 1000mm
• Door Height - up to 2200mm
• Door Weight - up to 100kg
• Door Closer Suitable

To hold the door open push the door towards the door holder until it is caught by the hook, it is released by actuating the hook while pushing the door against the holder at the same time.

With anchor bolt: Put the provided anchor bolt in the floor and grout it at the desired arresting point which should be the greatest possible distance from the door hinge. After the grouting material has hardened, screw the door holder on and fix the roller block at the corresponding position on the door.

Without anchor bolt: Screw the holder with four screws and the plugs on the floor at the desired position which should be the greatest possible distance from the door hinge and fix the roller block on the door at the  orresponding position.

For height compensation we recommend the additional use of the shim 1610 (20 mm).
